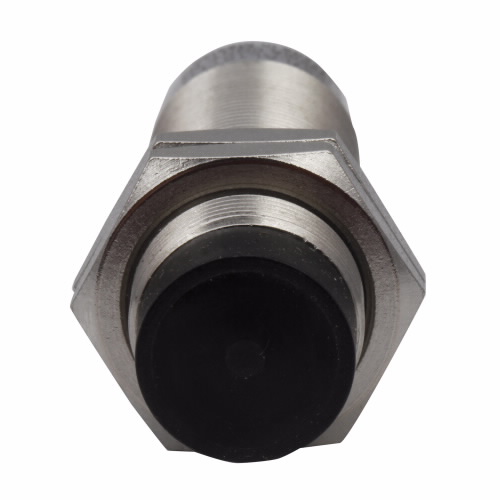

EATON E57LAL18T111ED Inductive Proximity Sensor, Straight, 18 Mm, Unshielded, 4 Pin, 6-48 VDC
Get it by Thursday, Aug 27
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Connection | M12 |
| Contact Configuration | NO PNP Open Collector |
| Contact Rating | 500 mA at 6-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 2.74" |
| Max. Amps | 500 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Auto Reset |
| Type | Premium+ Inductive Proximity Sensor |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.96 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Width | Product Height | Input Voltage | Contact Configuration | Contact Rating | Accuracy | Ip Rating | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57LAL12A2EP | 0.47" | 1.9" | 20-250V AC | 2-wire AC, NO | 250 mA at 250V AC | Less Than 3% | IP67 | 158°F | €778.34 | |
|
E57LAL12A2E4 | 0.47" | 2.87" | 20-250V AC | 2-wire AC, NO | 250 mA at 250V AC | Less Than 3% | IP67 | 158°F | €354.39 | |
 |
E57LAL12A2EA | 0.47" | 0.47" | 20-250V | 2-wire AC, NO | 250 mA at 250V AC | Less Than 3% Sensing Range | IP67, IP69K | 158°F | €467.94 | |
|
E57LAL12A2E5 | 0.47" | 0.47" | 20-250V | 2-wire AC, NO | 250 mA at 250V AC | Less Than 3% Sensing Range | IP67, IP69K | 158°F | €380.76 | |
 |
E57LAL12A2E | 0.47" | 0.47" | 20-250V | 2-wire AC, NO | 250 mA at 250V AC | Less Than 3% Sensing Range | IP67, IP69K | 158°F | €412.56 | |
|
E57LAL12A2E3 | 0.47" | 2.87" | 20-250V AC | 2-wire AC, NO | 250 mA at 250V AC | - | IP67 | 158°F | €347.63 | |
|
E57LAL12A2 | - | - | 20-250V | 2-Wire AC, No | 250 mA @ 250V | Less Than 3% Sensing Range | - | - | €391.68 |
