EATON E57-18LE20-CD Cylindrical Proximity Sensor, 6 to 48 VDC, 500 Hz Proximity Sensor, 3 Wire NPN, Metal
Item: BJ3BZCModel: E57-18LE20-CDCross Ref: 2XCU3
7 In Stock
Ships within 2 days via
10.00% off
€435.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Accuracy | Less Than 3% Of Sensing Distance |
| Actuator Function | Non Embeddable |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 303 |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN, NO |
| Contact Rating | 500 mA at 6-30V DC, 300 mA at 32-48V DC |
| Dc Supply Voltage Rating | 6-48V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| End Bell Material | Polycarbonate |
| Features | Auto Reset Short Circuit |
| Front Cap Material | Polyphenylene Sulfide |
| Includes Indicator Lights | Indicator Lights Included |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Green Power Up Turns Red When Output Energized |
| Length | 0.71" |
| Load Current - Maximum | 500 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Pins | 4 |
| Number Of Wires | 3 |
| Output Circuit | NPN |
| Output Circuit Contact Form | No |
| Output Circuit Type | NPN |
| Overall Height | 69 mm |
| Product Height | 2 18/25" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Auto Reset Short Circuit |
| Sensing Distance - Maximum | 20 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 18 mm |
| Sensor Type | Inductive Proximity |
| Series | E57 Series |
| Standards | Ce, Csa, Ul Listed |
| Supply Voltage | 6-48V DC |
| Tube Material | Stainless Steel |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Wires | Max. Operating Temp. | Min. Operating Temp. | Number Of Pins | Ip Rating | Cable Length | Sensing Method | Cable Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

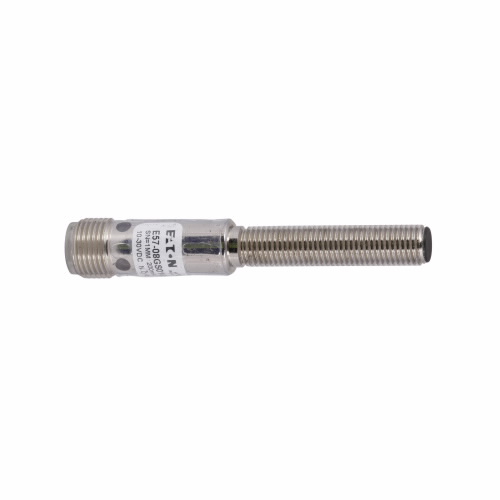

E57-08GS01-GDB | 3 | 158°F | -13°F | 4 | IP67, IP69K | - | Inductive | - | €261.49 | |
|
E57-08GS01-CDB | 3 | 140°F | 32°F | 4 | IP67, IP69K | - | Inductive | - | €242.02 | |
 |

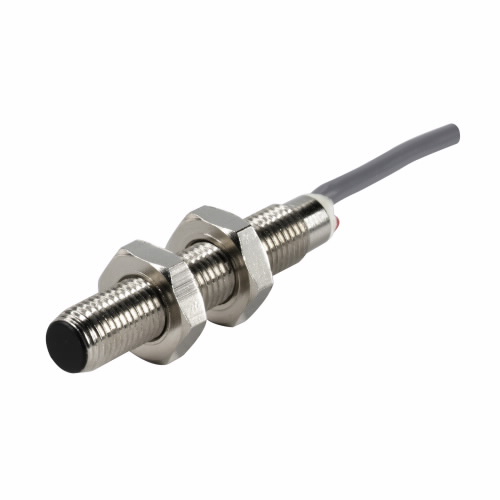

E57-08GS01-C | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €282.59 | |
 |
E57-08GU02-C | 3 | 140°F | 32°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €239.65 | |
|
E57-08GS01-G | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €228.00 | |
 |

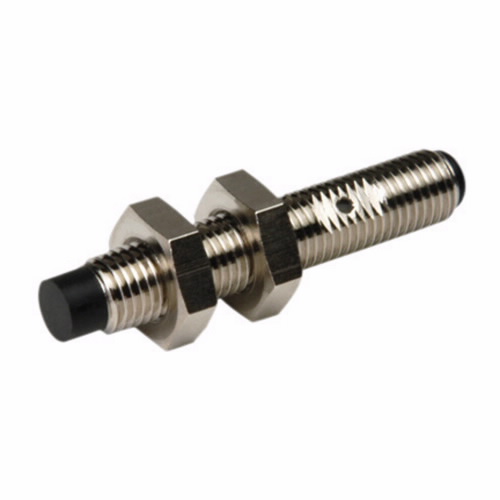

E57-08GU02-CDB | 3 | 140°F | 32°F | 4 | IP67, IP69K | - | Inductive | - | €256.85 | |
|
E57-08GU02-G | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €227.39 |
