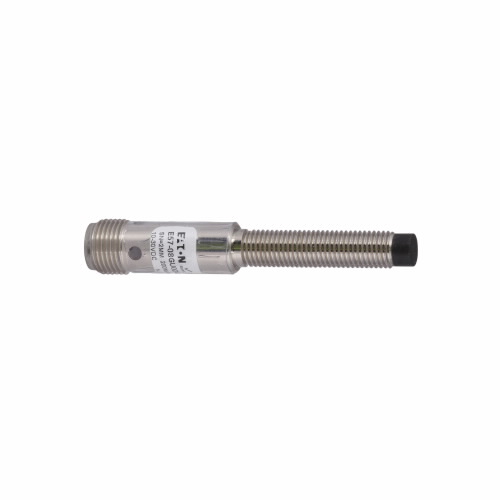

EATON E57-08GS01-GDB Cylindrical Proximity Sensor, 10 to 30 VDC, 2000 Hz Proximity Sensor, 3 Wire PNP, Metal
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€248.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Accuracy | Less Than 1.0% Sensing Range |
| Actuator Function | Shielded |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Connection | M12 |
| Contact Configuration | PNP Open Collector, NO |
| Contact Rating | 100 mA at 10-30V DC |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Enclosure Material | Brass |
| Features | Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output On |
| Length | 2 19/25" |
| Load Current - Maximum | 200 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 100 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nominal Sensor Diameter | M8 Threaded |
| Number Of Pins | 4 |
| Number Of Wires | 3 |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Type | PNP |
| Overall Height | 50 mm |
| Product Height | 0.31" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.31" |
| Protection Type | Short Circuit |
| Sensing Distance - Maximum | 1 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 8 mm |
| Series | E57 Series |
| Standards | Ce, Csa, Ul Listed |
| Supply Voltage | 10-30V DC |
| Type | Inductive Global Proximity Sensor |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 0.79 |
| Country of Origin | US |
Product Variants
| Model | Number Of Wires | Max. Operating Temp. | Min. Operating Temp. | Number Of Pins | Ip Rating | Cable Length | Sensing Method | Cable Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E57-12LE10-B | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €371.29 | |
| E57-12LE10-B1 | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €366.73 | |
| E57-12LE10-B1D | 3 | 158°F | -13°F | 4 | IP67, IP69K | - | Inductive | - | €462.52 | |
| E57-12LE10-C | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €388.39 | |
| E57-12LE10-C1 | 3 | 158°F | -13°F | - | IP67, IP69K | 79.2 ft. | Inductive | PVC | €388.05 | |
| E57-12LE10-C1D | 3 | 158°F | -13°F | 4 | IP67, IP69K | - | Inductive | - | €442.77 | |
| E57-12LE10-CD | 3 | 158°F | -13°F | 4 | IP67, IP69K | - | Inductive | - | €438.37 |
