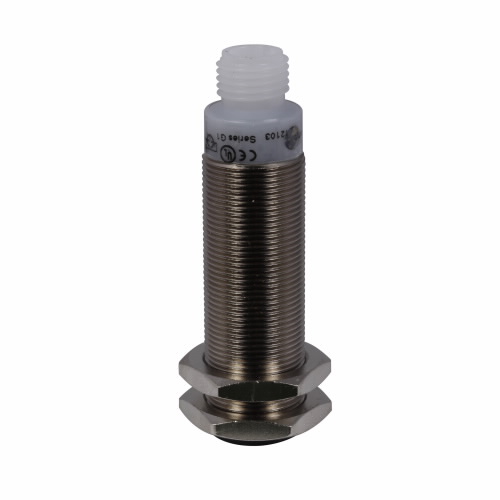

EATON E57-18LE12-AA Cylindrical Proximity Sensor, 20 to 132 VAC, 20 Hz Proximity Sensor Op Freq, 2 Wire, Metal
Item: BJ3BXMModel: E57-18LE12-AACross Ref: 2XCR1
7 In Stock
Ships within 2 days via
5.00% off
€696.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | 20-132V AC |
| Accuracy | Less Than 3% Sensing Range |
| Actuator Function | Shielded |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 303 |
| Connection | Dual Key Micro |
| Contact Configuration | 2-wire AC, NO |
| Contact Rating | 250 mA at 250V AC |
| Dc Supply Voltage Rating | Not Rated |
| Display Qty | 1 |
| Electrical Connection | Micro |
| Electrical Installation Type | Direct Connector |
| Enclosure Material | Stainless Steel |
| Features | 360掳 Led Indicator |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 20-132V |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 2 18/25" |
| Max. Ac Amps | 250 mA |
| Max. Load Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 12 mm |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 3 |
| No. Of Wires | 2 |
| Nominal Sensor Dia. | M18 Threaded |
| Output Circuit | 2 Wire AC |
| Output Circuit Contact Form | No |
| Output Circuit Type | AC-Type |
| Overall Height | 69 mm |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 18 mm |
| Series | E57 Series |
| Supply Voltage | 20-132V AC |
| Type | Premium+ Inductive Proximity Sensor |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.91 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Input Voltage | Product Height | Product Width | Max. Amps | Min. Operating Temp. | Max. Operating Temp. | Contact Configuration | Supply Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GS01-GDB | 10-30V DC | 0.31" | 0.31" | 100 mA | -13°F | 158°F | PNP Open Collector, NO | 10-30V DC | €261.49 | |
|
E57-08GS01-CDB | 10-30V DC | 2 4/5" | 0.31" | 100 mA | 32°F | 140°F | NPN Open Collector, NO | 10-30V DC | €242.02 | |
 |
E57-08GS01-C | 10-30V DC | 0.31" | 0.31" | 100 mA | -13°F | 158°F | NPN Open Collector, NO | 10-30V DC | €282.59 | |
 |
E57-08GU02-C | 10-30V DC | 1.77" | 0.31" | 100 mA | 32°F | 140°F | NPN Open Collector, NO | 10-30V DC | €239.65 | |
|
E57-08GS01-G | 10-30V DC | 0.31" | 0.31" | 100 mA | -13°F | 158°F | PNP Open Collector, NO | 10-30V DC | €228.00 | |
 |
E57-08GU02-CDB | 10-30V DC | 2 3/4" | 0.31" | 100 mA | 32°F | 140°F | NPN Open Collector, NO | 10-30V DC | €256.85 | |
|
E57-08GU02-G | 10-30V DC | 0.31" | 0.31" | 100 mA | -13°F | 158°F | PNP Open Collector, NO | 10-30V DC | €227.39 |
