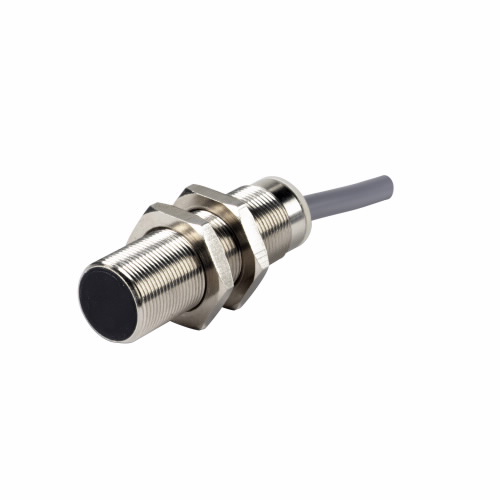

EATON E57-18GS05-CDB Inductive Proximity Sensor, Straight, Dist. 8 Mm, 100 mA At 30 VDC, Shielded
Get it by Monday, Dec 22
€206.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN Open Collector, NO |
| Contact Rating | 100 mA at 30V DC |
| Enclosure Material | Brass |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.71" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 100 mA |
| Min. Operating Temp. | -13°F |
| Product Height | 2.99" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
| Weight | 0.1438 lbs. |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 7.59 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Number Of Wires | Min. Operating Temp. | Max. Operating Temp. | Number Of Pins | Cable Material | Cable Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GE03-C1 | IP67, IP69K | 79.2 ft. | - | 32°F | 140°F | - | PVC | - | €153.14 | |
 |
E57-08GBE03-C | IP67, IP69K | 79.2 ft. | 3 | 32°F | 104°F | - | PVC | - | €208.16 | |
|
E57-08GE03-C | IP67, IP69K | 2m | 3 | 32°F | 104°F | - | PVC | - | €227.12 | |
 |
E57-08GE03-GDB | IP67, IP69K | - | 3 | 32°F | 104°F | 4 | - | - | €216.19 | |
 |
E57-08GE03-CDB | IP67, IP69K | - | 3 | 32°F | 104°F | 4 | - | - | €263.64 | |
|
E57-08GE03-C1DB | IP67, IP69K | - | - | 32°F | 140°F | - | - | - | €160.94 | |
|
E57-08GE03-C1NB | IP67, IP69K | - | - | 32°F | 140°F | - | - | - | €165.16 |
