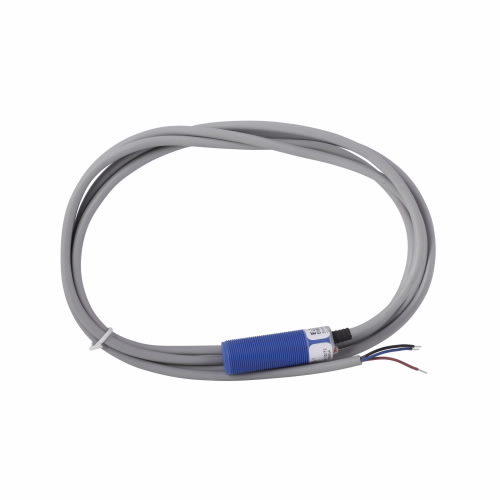

EATON E55CAL18T110 Proximity Sensor Enclosure, Distance 5 Mm, Npn Open Collector, 200 mA At 30 VDC, 10-30 VDC
Get it by Friday, Aug 28
€679.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Cable Sheath Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | NPN Open Collector, NO |
| Contact Rating | 200 MA at 30V DC |
| Cord Length | 79.2 ft. |
| Enclosure Material | polybutylene Teraphtalate |
| Height | 2.17" |
| Input Voltage | 10-30V DC |
| Led Indicator | Output Status |
| Length | 0.71" |
| Max. Amps | 200 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Product Name | Eaton 55 Series Photoelectric Sensor |
| Protection Type | Reverse Polarity And Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Enclosure Material | Led Indicator | Min. Operating Temp. | Connection | Max. Amps | Sensor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E55BLT1D | 1.57" | 35-250V | PBT Resin | Power On Output On | -13°F | Screw Terminal | 400 mA | - | €965.08 | |
 |
E55BLT1C | 1.57" | 35-250V | PBT Resin | Output On Power On | -13°F | Screw Terminal | 400 mA | - | €977.34 | |
 |
E55CAL18A2E | 2.17" | 20-250V AC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 150 mA | Inductive Proximity | €605.28 | |
 |
E55BLT1E | 1.57" | 35-250V | PBT Resin | Output On Power On | -13°F | Screw Terminal | 400 mA | - | €965.08 | |
 |
E55CAL12A2E | 2.17" | 20-250V AC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 150 mA | Inductive Proximity | €595.20 | |
 |
E55CAL12T110 | 2.17" | 10-30V DC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 200 mA | Inductive Proximity | €478.77 | |
 |
E55CAL18T111 | 0.71" | 10-30V DC | - | Output On | -13°F | - | 200 mA | - | €453.92 |
