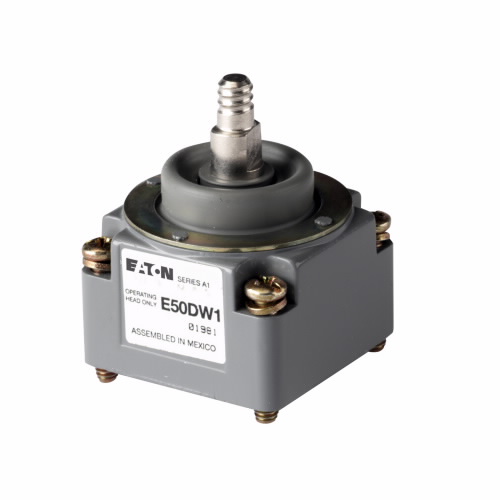

EATON E50DW1 E50 Nema Heavy Duty Plug-In Limit Switch, St And ard Duty, Wobble Head, Spring Return | BJ2ZVP 49C029

EATON E50DW1 Limit Switch Head, Top, Cat Wisker Head Actuator

Item: BJ2ZVPModel: E50DW1Cross Ref: 49C029
7 In Stock

Ships within 2 days via

€311.49
10.00% off
€280.35 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Limit Switch
Action Momentary
Actuator Location Top
Actuator Style Wobble Stick
Actuator Type Standard Duty, Wobble Head, Spring Return
Arm/operator Length 1.1"
Compatible With Brand Eaton
Compatible With Grainger Part Number 49A973
Compatible With Manufacturer Model Number E50SA
Compatible With Series E50 Series
Differential Travel 15°
Directional Movement Omnidirectional
Display Qty 1
Enclosure Material Die Cast Zinc
Height 1.78"
Includes Actuator Actuator Not Included
Ip Rating IP67
Length 1.85"
Manufacturer Warranty Length 1 yr.
Max. Operating Temp. 201°F
Min. Operating Temp. 14°F
Nema Enclosure Rating NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Operating Force 0.67N
Operating Torque 2 lbs.-in.
Overall Depth 1.85"
Overall Height 1.78"
Overall Width 1.54"
Overtravel 10°
Pretravel 5°
Reset Travel 6°
Series E50 Series
Total Travel 15°
Warranty 1 yr.
Width 1.54"

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)4.52
Ship length (cm)4.7
Ship width (cm)3.91
Country of OriginUS

Product Variants

ProductModelIp RatingActuator StyleContact FormAc Contact RatingElectrical ConnectionHeightDc Contact RatingBoot Sealed ActuatorPrice
EATON E50AH16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHN 49C004 E50AH16PIP67, IP69KPlunger1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€890.12
EATON E50AL1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZHQ 49A922 E50AL1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€796.00
EATON E50AL16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHU 49A993 E50AL16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€714.20
EATON E50AH1 E50 Nema Heavy Duty Plug-In Limit Switch, Screw Terminals, 10A At 240 Vac, 1A At 250 Vdc | BJ2ZHX 49A921 E50AH1IP67Plunger1NO/1NC10A @ 240VScrew Terminals4.22"1A @ 250VNo Boot Included€883.35
EATON E50AM16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft.Cable, 10A At 240 Vac | BJ2ZKG 49A994 E50AM16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 125VBoot Included€801.59
EATON E50AM1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10Aat240 Vac | BJ2ZKX 49A923 E50AM1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€693.52
EATON E50AR1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZMX 49A924 E50AR1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€618.62
