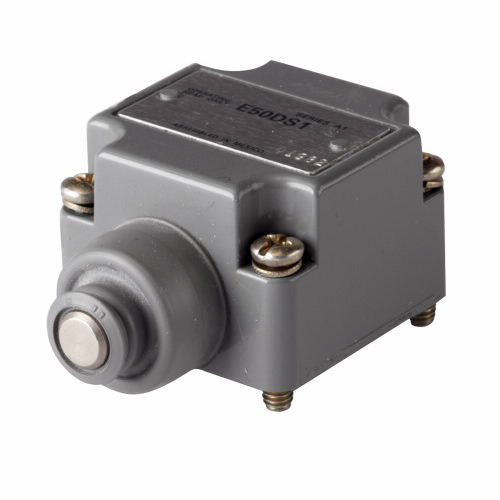

EATON E50DS1 E50 Heavy Duty Factory Sealed 6P+ Limit Switch, Side Pushbutton, Die Cast Zinc, Nema 1, 3 | BJ2ZUP 49C021

EATON E50DS1 Limit Switch Head, CW and CCW, Push Button Actuator

Item: BJ2ZUPModel: E50DS1Cross Ref: 49C021
7 In Stock

Ships within 2 days via

€376.30
10.00% off
€338.67 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Limit Switch
Action Momentary
Actuator Location Side
Actuator Style Plunger
Actuator Type Side Pushbutton
Arm Length - Maximum 0.06"
Arm/operator Length 0.06"
Compatible With Brand Eaton
Compatible With Grainger Part Number 49A973
Compatible With Manufacturer Model Number E50SA
Compatible With Series E50 Series
Differential Travel 1/4"
Directional Movement Linear
Display Qty 1
Enclosure Material Die Cast Zinc
Height 2 1/4"
Includes Actuator Actuator Included
Ip Rating IP67
Length 1.05"
Manufacturer Warranty Length 1 yr.
Max. Operating Temp. 201°F
Min. Operating Temp. 14°F
Nema Enclosure Rating NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Operating Force 2.2N
Operating Torque 4 lbs.-in.
Overall Depth 1.05"
Overall Height 2 1/4"
Overall Width 1.54"
Overtravel 0.07"
Plunger Adjustability Fixed
Pretravel 0.03"
Reset Travel 0.03"
Series E50 Series
Total Travel 1/4"
Warranty 1 yr.
Width 1.54"

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)5.72
Ship length (cm)2.67
Ship width (cm)3.91
Country of OriginUS

Product Variants

ProductModelIp RatingActuator StyleContact FormAc Contact RatingElectrical ConnectionHeightDc Contact RatingBoot Sealed ActuatorPrice
EATON E50AH16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHN 49C004 E50AH16PIP67, IP69KPlunger1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€890.12
EATON E50AL1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZHQ 49A922 E50AL1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€796.00
EATON E50AL16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHU 49A993 E50AL16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€714.20
EATON E50AH1 E50 Nema Heavy Duty Plug-In Limit Switch, Screw Terminals, 10A At 240 Vac, 1A At 250 Vdc | BJ2ZHX 49A921 E50AH1IP67Plunger1NO/1NC10A @ 240VScrew Terminals4.22"1A @ 250VNo Boot Included€883.35
EATON E50AM16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft.Cable, 10A At 240 Vac | BJ2ZKG 49A994 E50AM16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 125VBoot Included€801.59
EATON E50AM1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10Aat240 Vac | BJ2ZKX 49A923 E50AM1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€693.52
EATON E50AR1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZMX 49A924 E50AR1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€618.62
