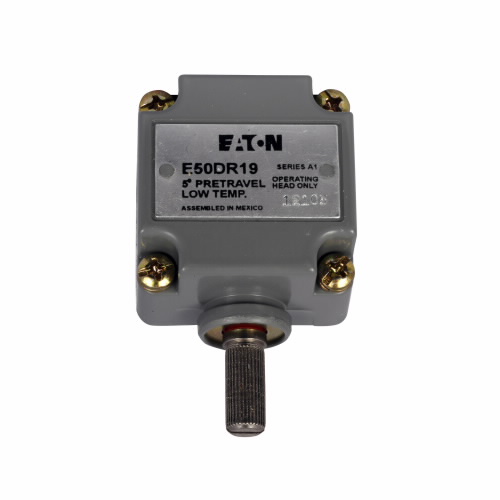

EATON E50DR19 Limit Switch Head, CW and CCW, Rotary Lever Actuator, Side
Item: BJ2ZUYModel: E50DR19Cross Ref: 49C018
7 In Stock
Ships within 2 days via
5.00% off
€167.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Action | Momentary |
| Actuator Location | Side |
| Actuator Style | Rotary Lever |
| Actuator Type | Side rotary low temperature spring return |
| Arm/operator Length | 0.63" |
| Compatible With Brand | Eaton |
| Compatible With Grainger Part No | 49A973 |
| Compatible With Manufacturer Model Number | E50SA |
| Compatible With Series | E50 Series |
| Differential Travel | 90° |
| Directional Movement | CCW/CW |
| Display Qty | 1 |
| Enclosure Material | Die Cast Zinc |
| Features | Low Temperature |
| Height | 2.46" |
| Included Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Length | 1.05" |
| Max. Arm Length | 0.63" |
| Max. Operating Temp. | 175°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Force | 2.2N |
| Operating Torque | 3 lbs.-in. |
| Over Travel | 5° |
| Overall Depth | 1.05" |
| Overall Height | 2.46" |
| Overall Width | 1.54" |
| Pre-travel | 5° |
| Reset Travel | 2° |
| Series | E50 Series |
| Total Travel | 90° |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 6.25 |
| Ship length (cm) | 2.67 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Max. Amps | Connection | Electrical Connection | Min. Operating Temp. | Max. Operating Temp. | Ip Rating | Actuator Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50AH16P | 4.67" | 10A | 8 ft (2.4 m) cable | 8 ft. Cable | 14°F | 201°F | IP67, IP69K | Side | €890.12 | |
 |
E50AL1 | 2.46" | 1A | Screw Terminal | Screw Terminal | 10°F | 200°F | IP67 | Side | €468.34 | |
|
E50AL16P | 4.67" | 10A | 8 ft (2.4 m) cable | 8 ft. Cable | 10°F | 201°F | IP67, IP69K | Side | €714.20 | |
|
E50AH1 | 4.22" | 10A | Screw Terminal | Screw Terminal | 14°F | 201°F | IP67 | Side | €883.35 | |
|
E50AM16P | 4.67" | 10A | 8 ft (2.4 m) cable | 8 ft. Cable | 14°F | 201°F | IP67, IP69K | Side | €801.59 | |
 |
E50AM1 | 2.46" | 1A | Screw Terminal | Screw Terminal | 14°F | 201°F | IP67 | Side | €693.52 | |
|
E50AR1 | 2.46" | 1A | Screw Terminal | Screw Terminal | 10°F | 200°F | IP67 | Side | €618.62 |
