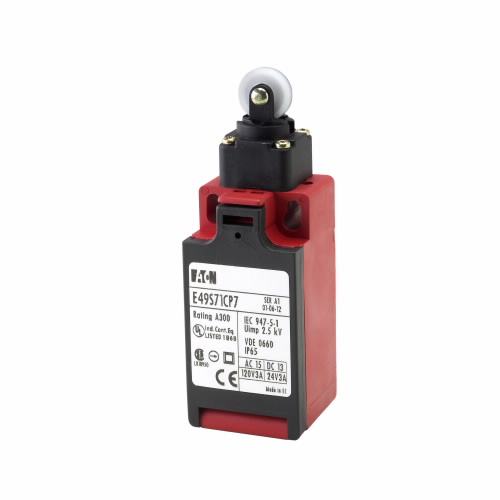

EATON E49S71CP7 Limit Switch, 600 VAC, 250 VDC, 1.5/10A, Top Push Roller Actuator, 1NO-1NC Contact
Get it by Monday, Dec 22
€123.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Actuator Type | Top push roller |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 240V AC, 1.5A At 30V DC |
| Enclosure Material | Plastic |
| Height | 1 1/5" |
| Ip Rating | IP65 |
| Max. Ac Amps | 10A Continuous |
| Max. Dc Amps | 1.5A At 24V DC |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -22°F |
| Mounting Type | Miniature DIN Rail |
| Nema Enclosure Rating | NEMA 13, NEMA 4, NEMA 4X, NEMA 6P |
| Warranty | 1 yr. |
| Width | 1.22" |
Shipping Info:
| Ship height (cm) | 3.05 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 3.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Mounting Type | Height | Ip Rating | Type | Price | |
|---|---|---|---|---|---|---|---|
 |
E49CP7 | - | 1.34" | IP65 | - | €25.19 | |
 |
E49M11CP1 | Standard DIN Rail | 1.58" | - | - | €232.71 | |
 |
E49M11AP1 | Standard DIN Rail | 1.58" | - | - | €244.33 | |
 |
E49M11BP1 | Standard DIN Rail | 1.58" | - | - | €269.27 | |
 |
E49M11UP1 | Standard DIN Rail | 1.58" | - | - | €257.90 | |
 |
E49M11CP2 | - | 4 13/25" | - | Mechanical Limit Switches | €208.88 | |
 |
E49M11VP1 | Standard DIN Rail | 1.58" | - | - | €157.14 |
