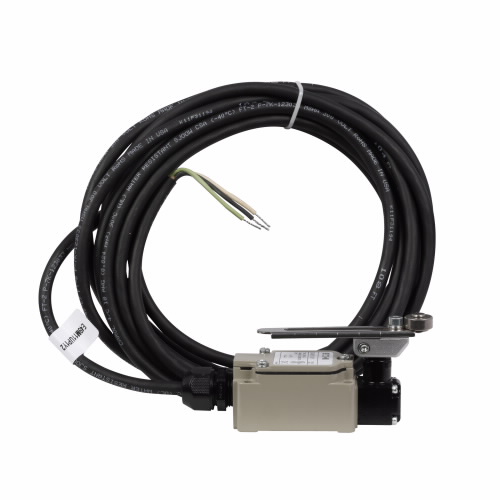

EATON E49M11UP1Y2 Compact Limit Switch, 250 VAC/24 VDC, 1.5/10A, Adjustable Rod Lever Actuator
Get it by Friday, Aug 28
€437.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Accessories | 20 ft. Cable |
| Actuator Type | Adjustable roller lever |
| Connection | Screw Terminal |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 250V AC, 1.5A At 24V DC |
| Enclosure Material | Die Cast Aluminum |
| Height | 1.58" |
| Length | 5 3/25" |
| Max. Amps | 1.5A , 10A Continuous |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | 14°F |
| Mounting Type | Standard DIN Rail |
| Operating Speed | 1 mm/sec. to 2 mps |
| Width | 2 16/25" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 4.01 |
| Ship length (cm) | 13 |
| Ship width (cm) | 6.71 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Max. Amps | Min. Operating Temp. | Switch Type | Mounting Type | Actuator Type | Operating Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E49CP7 | 1.34" | Glass Reinforced Polyamide | - | -22°F | - | - | - | - | €25.19 | |
 |
E49M11CP1 | 1.58" | Die Cast Aluminum | 1.5A | 14°F | - | Standard DIN Rail | Top push roller | - | €232.71 | |
 |
E49M11AP1 | 1.58" | Die Cast Aluminum | 1.5A | 14°F | - | Standard DIN Rail | Roller lever | - | €244.33 | |
 |
E49M11BP1 | 1.58" | Die Cast Aluminum | 1.5A | 14°F | - | Standard DIN Rail | Top push | - | €269.27 | |
 |
E49M11UP1 | 1.58" | Die Cast Aluminum | 1.5A | 14°F | - | Standard DIN Rail | Adjustable roller lever | - | €257.90 | |
 |
E49M11CP2 | 4 13/25" | Die Cast Aluminum | 10A | -58°F | Top push roller | - | - | - | €208.88 | |
 |
E49M11VP1 | 1.58" | Die Cast Aluminum | 1.5A | 14°F | - | Standard DIN Rail | Wobble | - | €157.14 |
