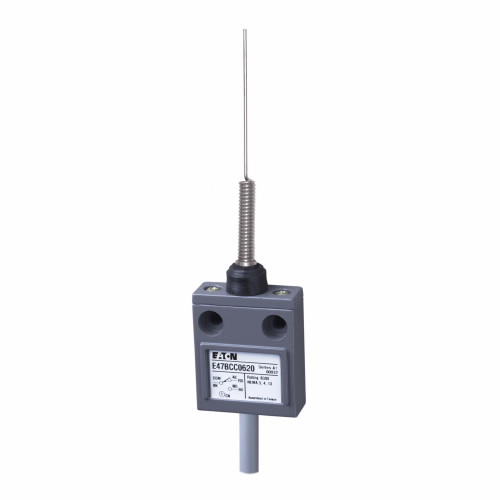

EATON E47BCC20 Pre-Wired Limit Switch, 5A AC/5A DC, Wobble Stick Actuator, SPDT Contact
Get it by Thursday, Dec 18
€248.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Cable Length | 120 ft. |
| Cable Type | PVC |
| Connection | 10 ft (3 m) cable |
| Contact Configuration | SPDT |
| Contact Rating | 5A At 240V AC/5A At 14V DC |
| Enclosure Material | Die Cast Aluminum |
| Height | 3 24/25" |
| Ip Rating | IP67 |
| Length | 1.58" |
| Max. Ac Amps | 5A |
| Max. Dc Amps | 5A |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | 14°F |
| Nema Enclosure Rating | NEMA 13, NEMA 4, NEMA 6 |
| Switch Type | Wobble stick |
| Type | E47 |
| Warranty | 1 yr. |
| Weight | 0.825 lbs. |
| Width | 0.69" |
Shipping Info:
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 10.06 |
| Ship length (cm) | 4.01 |
| Ship width (cm) | 1.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Cable Length | Ip Rating | Type | Price | |
|---|---|---|---|---|---|---|---|
 |
E47BCC07P4 | 1/2" | - | IP67 | E47 | €253.81 | |
 |
E47BCC05 | - | - | - | - | €347.59 | |
 |
E47BCC06 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 | |
 |
E47BCC06P4 | 2 1/2" | - | IP67 | E47 | €350.95 | |
 |
E47BCC07 | 0.69" | 117.6 ft. | IP67 | E47 | €347.59 | |
|
E47BCC05P4 | 2.13" | - | IP67 | E47 | €203.60 | |
 |
E47BCC08 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 |
