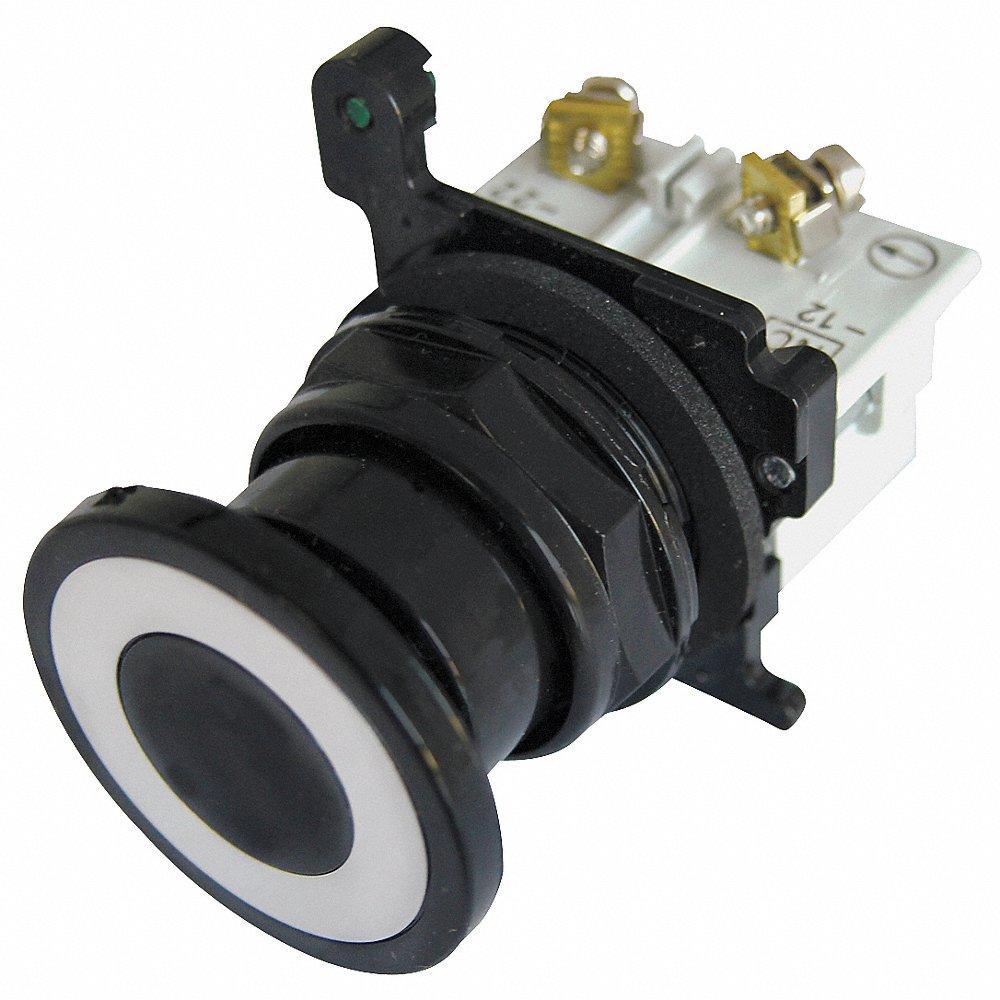

EATON E34GFBC1-3X Non-Illuminated Push Button, 30 mm Size, Black, 2NC, 40mm Mushroom Head
Item: CJ2XHRModel: E34GFBC1-3XCross Ref: 39R323
7 In Stock
Ships within 2 days via
10.00% off
€285.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Maintained/Momentary |
| Bezel Material | Epoxy Coated Zinc Die Cast |
| Contact Form | 1NC |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Passed A 600 Hour Salt Spray Test |
| Head Material | Epoxy Coated Metal |
| Head/lens Color | Black |
| Ip Rating | IP65 |
| Maintained Action Release | Push/Pull |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 120V AC/DC |
| Overall Depth | 1.63" |
| Overall Height | 1.78" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Oil And Grease Resistant, Watertight |
| Series | E34 Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Contact Form | Size | Bezel Material | Contact Configuration | Type | Legend | Number Of Positions | Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E34EB1-53X | 1NO | - | Epoxy Coated Zinc Die Cast | - | - | - | - | - | €151.38 | |
| E34EB1-51X | 1NC | 30.5 mm | Epoxy Coated Zinc Die Cast | 1 NC | Extended | - | - | - | €151.38 | |
| E34EB2-1X | 1NO/1NC | - | Epoxy Coated Zinc Die Cast | 1 NC, 1 NO | 30.5 mm, Corrosion Resistant | - | - | - | €232.84 | |
| E34EB2-51X | 1NC | - | Epoxy Coated Zinc Die Cast | 1 NC | 30.5 mm, Corrosion Resistant | - | - | - | €151.38 | |
| E34EB1-1X | 1NO/1NC | - | Epoxy Coated Zinc Die Cast | 1 NC, 1 NO | 30.5 mm, Corrosion Resistant | - | - | - | €213.61 | |
| E34EB3-1X | - | 30.5 mm | - | 1 NC, 1 NO | Mushroom | - | - | - | €232.84 | |
| E34EB2-53X | 1NO | - | Epoxy Coated Zinc Die Cast | 1 NO | 30.5 mm, Corrosion Resistant | - | - | - | €151.38 |
