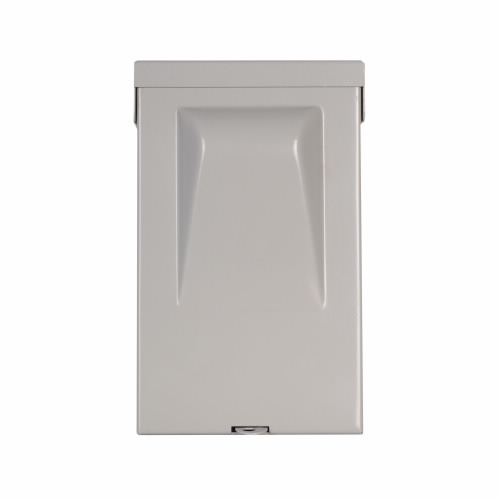

EATON DPF221R Air Conditioning Disconnect Switch, Fusible, 30 A, Single Phase, 240 VAC, Galvanized Steel
Item: BJ2LJKModel: DPF221RCross Ref: 5XHR1
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Disconnect |
| Color | Gray |
| Contact Form | DPST |
| Current Rating | 30A |
| Depth | 5 1/2" |
| Enclosure Material | Galvanized Steel |
| Features | 1In Knockouts On Bottom, Back, And Side, Copper-Rated Line And Load Lugs, Protective Shield, Service Entrance Rated, Wiring Space For Mounting With A Stud Gun (Single Keyhole, Two Or Three Point Mounting) |
| For Environment | Indoor, Outdoor |
| Height | 8 3/4" |
| Horsepower @ 120v Ac | 2 hp |
| Horsepower @ 240v Ac | 3 hp |
| Housing Material | Galvanized Steel |
| Hp | 2 hp @ 120V, 3 hp @ 240V |
| Interrupt Rating | 10 kAIC |
| Length | 5 2/5" |
| Nema Enclosure Rating | NEMA 3R |
| Note | For Replacement Pullout Head, Order Part Number 96-3258-4. |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Product Name | Eaton Air Conditioning Disconnect |
| Protection Method | Fusible |
| Switch Design | Pull Out |
| Type | Fused Pullout |
| Ul Fuse Class | Class H |
| Voltage Rating | 240V AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 3 1/4" |
| Wire Size | #14 AWG to 3 AWG |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 22.1 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 8 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Current Rating | Height | Color | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|
 |
DPB222R | #14 AWG to 3 AWG | - | 8 3/5" | Gray | - | €73.60 | |
 |
DPB222RP | #14 AWG to 3 AWG | 60A | 8 3/5" | Gray | - | €649.55 | |
 |
DPF221RGF20WTST | - | - | - | - | - | €1,089.62 | |
 |
DPF222RGF20WTST | - | - | - | - | - | €1,044.71 | |
 |
DPF221RGF15WTST | - | - | - | - | - | €1,025.33 | |
 |
DPF221RP | #14 AWG to 3 AWG | 30A | 8.7" | Gray | - | €496.72 | |
 |
DPF222R | #14 AWG to 3 AWG | 60A | 8 3/4" | Gray | 2 | €70.70 |
