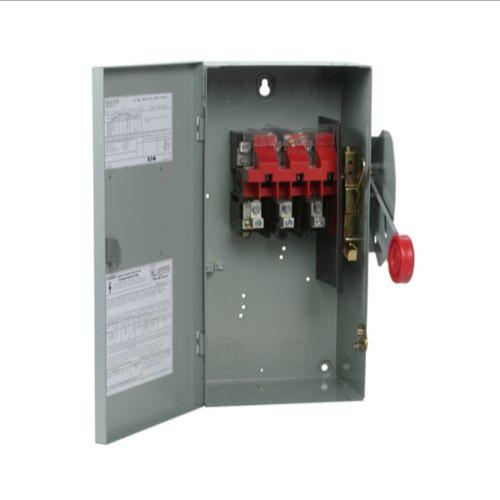

EATON DH362UGK Safety Switch, Non-Fusible, 60 A, Three Phase, 600 VAC, Galvanized Steel, Indoor
Item: BJ2JGVModel: DH362UGKCross Ref: 32UJ63
In Stock : 19 Get it by Thursday, Dec 18
10.00% off
€348.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 60A |
| Contact Form | 3PST |
| Current Rating | 60A |
| Depth | 10" |
| Duty | Heavy Duty |
| Enclosure Material | Steel |
| Environment | Indoor |
| Fuse Configuration | Non Fusible |
| Height | 16" |
| Horsepower @ 240v Ac | 20 hp |
| Horsepower @ 480v Ac | 50 hp |
| Horsepower @ 600v Ac | 60 hp |
| Housing Material | Steel |
| Length | 10" |
| Max. Hp Rating | 10 Hp @ 240V AC TD 1 Ph, 20 Hp @ 480V AC TD 1 Ph, 25 Hp @ 600V AC TD 1 Ph, 20 Hp @ 240V AC TD 3 Ph, 50 Hp @ 480V AC TD 3 Ph, 60 Hp @ 600V AC TD 3 Ph, 10 Hp @ 250V DC |
| Nema Enclosure Rating | NEMA 1 |
| Notes | Suitable For Service Entrance Use With A Neutral Or Ground Lug Kit Installed |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | Three |
| Protection Method | Non Fusible |
| Standards | Ul 98, Ul Listed |
| Type | Single-throw |
| Voltage | 600V |
| Voltage Rating | 600V AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 40.34 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 20.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Nema Enclosure Rating | Number Of Wires | Voltage | Number Of Poles | Enclosure Material | Environment | Protection Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DD321FDKW | 30A | NEMA 12, NEMA 3R | 3 | 240V | 3 | Galvanized Steel | - | - | €1,091.24 | |
 |
DH221FGKV | 30A | NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €691.68 | |
 |
DH221FDK | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €1,385.08 | |
|
DH221FDKV | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | - | RFQ
|
 |
DH221FGK | 30A | NEMA 1 | 2 | 240V | 2 | Steel | - | - | €155.06 | |
|
DH221FRKV | 30A | NEMA 3R | - | 240V | 2 | - | - | - | €1,300.13 | |
 |
DH221FWKV | 30A | NEMA 4X | 2 | 240V | 2 | Stainless Steel | - | - | €4,411.78 |
