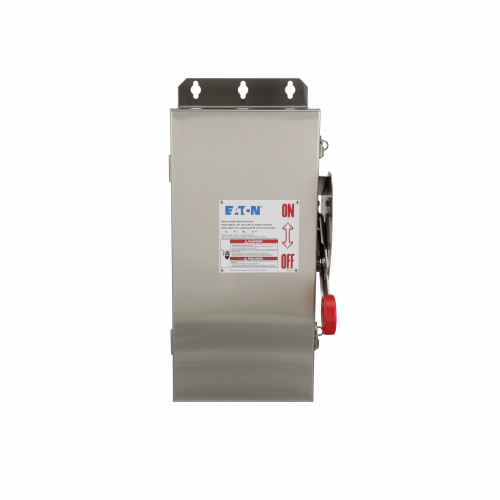

EATON Heavy Duty Single Throw Fused Safety Switches
Eaton heavy duty single throw fused safety switches provide a highly visible mode of disconnect to improve personnel and equipment safety. They are suitable for applications requiring consistent performance, safety and service continuity.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R| Style | Model | Height | Amps | Voltage | No. Of Poles | Enclosure Material | Wire Size | Depth | Hp @ 600v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DH661FDK | - | 30A | 600V | 6 | Galvanized Steel | - | - | - | €7,598.78 | |
| A | DH461FGKV | - | 30A | 600V | 4 | Steel | - | - | - | €2,522.25 | |
| B | DH222NGK-CSA | - | 60A | 240V | 2 | Steel | - | - | - | €1,499.46 | |
| C | DH361FRKLLV | 5 1/4" | 30A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,494.94 | |
| D | DH324FWKV | 6" | 200A | 240V | 3 | Stainless Steel | - | - | - | €19,001.91 | |
| D | DH322FGKV | 7 1/2" | 60A | 240V | 3 | Steel | #14 AWG to 2 AWG | - | - | €1,593.11 | |
| E | DH221FDK | 7 1/2" | 30A | 240V | 2 | Galvanized Steel | - | - | - | €1,385.08 | |
| F | DH261FGK | 7 1/2" | 30A | - | 2 | - | - | - | - | €318.84 | |
| F | DH221FGK | 7 1/2" | 30A | 240V | 2 | Steel | - | - | - | €141.13 | |
| D | DH221FRKV | 7 1/2" | 30A | 240V | 2 | - | - | - | - | €1,300.13 | |
| G | DH221FWKV | 7 1/2" | 30A | 240V | 2 | Stainless Steel | - | - | - | €4,411.78 | |
| D | DH221FGKV | 7 1/2" | 30A | 240V | 2 | Galvanized Steel | - | - | - | €691.68 | |
| D | DH261FGKV | 7 3/4" | 30A | 600V | 2 | Galvanized Steel | - | - | - | €1,476.55 | |
| H | DH221NRK-CSA | 7" | 30A | 240V | 2 | Galvanized Steel | - | - | - | €1,487.35 | |
| I | DH362NDK | 8 1/2" | 60A | 600V | 3 | Galvanized Steel | - | - | - | €3,256.91 | |
| E | DH321FDK-GCL | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €1,800.34 | |
| J | DH261FRK-CSA | 8 1/2" | 30A | - | 2 | Galvanized Steel | - | - | - | €2,589.87 | |
| E | DH261FDK-GCL | 8 1/2" | 30A | - | 2 | Galvanized Steel | - | - | - | €3,140.52 | |
| D | DH262FWKV | 8 1/2" | 60A | 600V | 2 | Stainless Steel | #14 AWG to 2 AWG | - | - | - | RFQ
|
| E | DH262FDK | 8 1/2" | 60A | 600V | 2 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,744.91 | |
| F | DH361FGK-CSA | 8 1/2" | 30A | 600V | 3 | Steel | #14 AWG to 2 AWG | - | - | €1,709.26 | |
| F | DH361NGK | 8 1/2" | 30A | 600V | 3 | - | #14 AWG to 2 AWG | - | - | €432.19 | |
| K | DH363NGKV | 8 1/2" | 100A | 600V | 3 | Steel | - | - | - | - | RFQ
|
| I | DH322NDK | 8 1/2" | 60A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,549.98 | |
| E | DH362FDK-GCL | 8 1/2" | 60A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €3,501.69 | |
| D | DH362NDKV | 8 1/2" | 60A | 600V | 3 | Galvanized Steel | - | - | - | €3,437.54 | |
| L | DH362FWK-GCL | 8 1/2" | 60A | 600V | 3 | Stainless Steel | - | - | - | €8,042.43 | |
| M | DH362FRK-CSA | 8 1/2" | 60A | 600V | 3 | Galvanized Steel | - | - | - | €3,548.49 | |
| N | DH261FWKX | 8 1/2" | 30A | 600V | 2 | Stainless Steel | - | - | - | €7,875.32 | |
| F | DH362FGK-CSA | 8 1/2" | 60A | 600V | 3 | Steel | #14 AWG to 2 AWG | - | - | €2,049.01 | |
| D | DH321NDKV | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,066.36 | |
| D | DH321FDKV | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €1,677.92 | |
| D | DH322NDKV | 8 1/2" | 60A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | - | RFQ
|
| O | DH322FWK316 | 8 1/2" | 60A | 240V | 3 | Stainless Steel | #14 AWG to 2 AWG | - | - | €9,985.41 | |
| D | DH322FDKV | 8 1/2" | 60A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | - | RFQ
|
| E | DH321FDK | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €1,530.68 | |
| D | DH321FGKV | 8 1/2" | 30A | 240V | 3 | Steel | #14 AWG to 2 AWG | - | - | €946.48 | |
| O | DH322FWKV | 8 1/2" | 60A | 240V | 3 | Stainless Steel | #14 AWG to 2 AWG | - | - | €6,594.29 | |
| I | DH321NDK | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | - | RFQ
|
| D | DH361NGKV | 8 1/2" | 30A | 600V | 3 | Steel | #14 AWG to 2 AWG | - | - | €1,794.44 | |
| K | DH363NRKV | 8 1/2" | 100A | 600V | 3 | Galvanized Steel | - | - | - | €5,058.38 | |
| E | DH321FDKJ | 8 1/2" | 30A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €1,804.54 | |
| M | DH361FRK-CSA | 8 1/2" | 30A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €3,023.26 | |
| P | DH321FWK316 | 8 1/2" | 30A | 240V | 3 | Stainless Steel | #14 AWG to 2 AWG | - | - | €8,014.02 | |
| Q | DH222FCK | 8 1/2" | 60A | 240V | 2 | Galvanized Steel | - | - | - | €10,221.07 | |
| I | DH222NDK | 8 1/2" | 60A | 240V | 2 | Galvanized Steel | - | - | - | €2,358.43 | |
| R | DH222NRK-CSA | 8 1/2" | 60A | 240V | 2 | Galvanized Steel | - | - | - | €2,647.06 | |
| D | DH222NDKV | 8 1/2" | 60A | 240V | 2 | Galvanized Steel | - | - | - | - | RFQ
|
| R | DH222NRKLLV | 8 1/2" | 60A | 240V | 2 | Galvanized Steel | - | - | - | €2,485.85 | |
| F | DH222FGK | 8 1/2" | 60A | 240V | 2 | Steel | - | - | - | €197.28 | |
| F | DH321FGKJ | 8 1/2" | 30A | 240V | 3 | Steel | #14 AWG to 2 AWG | - | - | €1,132.15 | |
| G | DH221NWK316 | 8 1/2" | 30A | 240V | 2 | Stainless Steel | - | - | - | - | RFQ
|
| N | DH222NWK316 | 8 1/2" | 60A | 240V | 2 | Stainless Steel | - | - | - | €9,568.97 | |
| R | DH222NRKV | 8 1/2" | 60A | 240V | 2 | Stainless Steel | - | - | - | €2,374.90 | |
| D | DH361FGKV | 8 1/2" | 30A | 600V | 3 | Steel | #14 AWG to 2 AWG | - | - | €1,532.41 | |
| D | DH262FRKV | 8 1/2" | 60A | 600V | 2 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,953.90 | |
| E | DH361FDKJ | 8 1/2" | 30A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €3,441.47 | |
| E | DH322FDK | 8 1/2" | 60A | 240V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,447.69 | |
| E | DH361FDK-GCL | 8 1/2" | 30A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,550.96 | |
| D | DH361FDKV | 8 1/2" | 30A | 600V | 3 | Galvanized Steel | #14 AWG to 2 AWG | - | - | €2,723.33 | |
| I | DH221NDK | 8 1/2" | 30A | 240V | 2 | Galvanized Steel | - | - | - | - | RFQ
|
Working Mechanism
- These switches consist of a handle or lever that controls the position of the switch contacts.
- When the switch handle is in the On position, the contacts are closed, allowing current to flow to the equipment.
- When the handle is moved to the Off position, the contacts are opened, cutting off power to the equipment.
Features
- These switches are 100% load break and 100% load make rated for user safety.
- They have NEMA-rated enclosures for protection from environmental contamination.
- These single throw safety switches are equipped with a mechanically interlocked cover to avoid unintended access when the switch is in the On position.
Standards and Approvals
- UL
Frequently Asked Questions
How to select the right Eaton heavy duty single throw fused safety switch for my application?
Consider the voltage & amperage requirements of your equipment, as well as the type of fuse and enclosure needed for your application.
Can these switches be used for three-phase applications?
Yes, Eaton heavy duty single throw fused safety switches are also available in three-pole configurations, making them suitable for three-phase applications.
What is the difference between a single-throw and a double-throw safety switch?
A single-throw safety switch has one set of contacts that are opened or closed by the switch handle, while a double-throw safety switch has two sets of contacts that can be switched between two separate circuits.
Can these switches be used in conjunction with smart control systems?
Yes, Eaton heavy duty single throw fused safety switches can be integrated with smart control systems like programmable logic controllers (PLCs) to provide advanced control and monitoring capabilities.
