EATON DH362FDK Fusible Dust Tight Receptacle Safety Switch, 600VAC, 20 Hp, 25 Hp, 30 Hp, 50 Hp, 3P
Item: BJ2JELModel: DH362FDK
In Stock : 2 Units Get it by Friday, Aug 14
5.00% off
€794.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 60A |
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible Without Neutral |
| Height | 8 1/2" |
| Length | 20" |
| Max. Hp | 20, 25/30, 50 Hp (1/3PH @480, 600 V) |
| Nema Enclosure Rating | NEMA 12, NEMA 3R |
| No. Of Poles | 3 |
| No. Of Wires | 3 |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 600V |
| Width | 9 1/2" |
| Wire Size | #14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Height | Enclosure Material | Fuse Configuration | Nema Enclosure Rating | Voltage | No. Of Poles | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DH361FDK2WRW | 30A | 29 3/4" | Galvanized Steel | Fusible Without Neutral | NEMA 12, NEMA 3R | 600V | 3 | #14 AWG to 2 AWG | €7,389.46 | |
|
DH361FD5WRK | 30A | 10" | Galvanized Steel | Fusible Without Neutral | NEMA 12, NEMA 3R | 600V | 3 | #14 AWG to 2 AWG | €6,944.45 | |
|
DH361FDK | 30A | 8 1/2" | Galvanized Steel | Fusible Without Neutral | NEMA 12, NEMA 3R | 600V | 3 | #14 AWG to 2 AWG | €1,947.03 | |
|
DH361FW5WRK | 30A | 10.22" | Stainless Steel | Fusible Without Neutral | NEMA 4X | 600V | 3 | #14 AWG to 2 AWG | €20,817.44 | |
 |

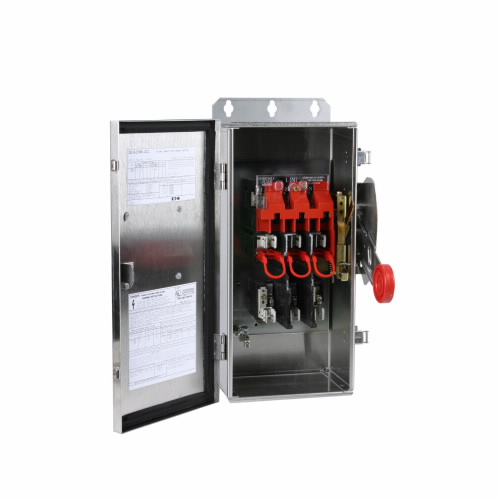

DH361FWK | 30A | 19 2/25" | Stainless Steel | Fusible Without Neutral | NEMA 4X | 600V | 3 | #14 AWG to 2 AWG | €6,010.08 | |
|
DH361FWKV | 30A | 24.95" | Stainless Steel | Fusible Without Neutral | NEMA 4X | 600V | 3 | #14 AWG to 2 AWG | €6,613.36 | |
 |

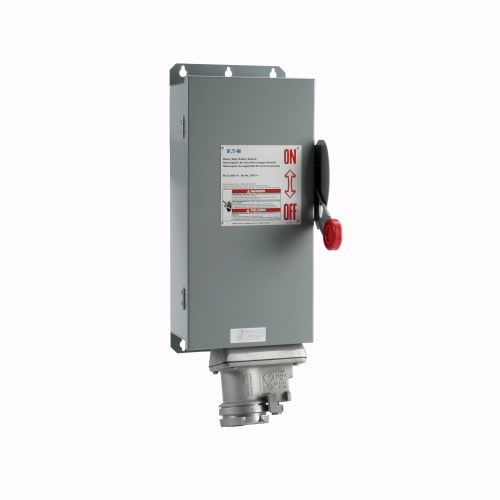

DH361UD5WRK | 30A | 10" | Galvanized Steel | Non Fusible | NEMA 12 | 600V | 3 | - | €6,270.11 |
