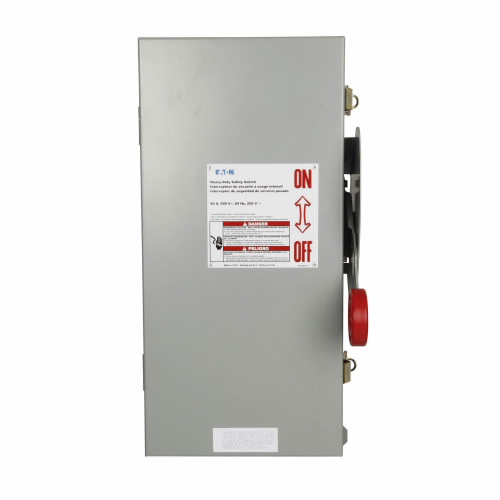

EATON DH361FDK Safety Switch, 600VAC, 30 7-1/2 Hp, 10 Hp, 15 Hp, 20 Hp, 3P
Get it by Wednesday, Dec 24
€1,947.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 30A |
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible Without Neutral |
| Height | 8 1/2" |
| Length | 20" |
| Max. Hp Rating | 7.5, 10/15, 20 Hp (1/3PH @480, 600 V) |
| Nema Enclosure Rating | NEMA 12, NEMA 3R |
| Notes | Suitable For Service Entrance Use With A Neutral Or Ground Lug Kit Installed. Can Be Field Modified To Meet NEMA 3R Rainproof Requirements When A Factory Provided Drain Hole Is Opened. |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 600V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 9 1/2" |
| Wire Size | #14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Enclosure Material | Nema Enclosure Rating | Voltage | Number Of Wires | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
DH361FDK2WRW | 30A | Galvanized Steel | NEMA 12, NEMA 3R | 600V | 3 | 3 | €7,389.46 | |
|
DH361FD5WRK | 30A | Galvanized Steel | NEMA 12, NEMA 3R | 600V | 3 | 3 | €6,944.45 | |
|
DH361FW5WRK | 30A | Stainless Steel | NEMA 4X | 600V | 3 | 3 | €20,817.44 | |
 |
DH361FWK | 30A | Stainless Steel | NEMA 4X | 600V | 3 | 3 | €6,010.08 | |
|
DH361FWKV | 30A | Stainless Steel | NEMA 4X | 600V | 3 | 3 | €6,613.36 | |
 |
DH361UD5WRK | 30A | Galvanized Steel | NEMA 12 | 600V | 3 | 3 | €6,270.11 | |
 |
DH361UDK2WR | 30A | Galvanized Steel | NEMA 12 | 600V | 3 | 3 | €6,079.10 |
