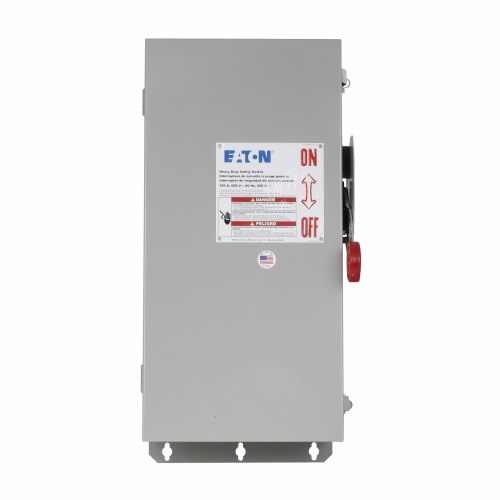

EATON DH263FDK Safety Switch, 600 VAC, 100A, 25 Hp, 30 Hp, 40 Hp, Dpst Contact, 2P
Get it by Monday, Dec 22
€3,725.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 100A |
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible Without Neutral |
| Height | 9" |
| Length | 25 1/2" |
| Max. Hp Rating | 30, 40 Hp/25 Hp (1PH @480, 600 V TD/600V DC) |
| Nema Enclosure Rating | NEMA 12 |
| Notes | Suitable For Service Entrance Use With A Neutral Or Ground Lug Kit Installed. Can Be Field Modified To Meet NEMA 3R Rainproof Requirements When A Factory Provided Drain Hole Is Opened. |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 600V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 13 1/4" |
| Wire Size | #14 AWG to 1/0 AWG |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 64.77 |
| Ship width (cm) | 33.66 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Nema Enclosure Rating | Number Of Wires | Voltage | Number Of Poles | Enclosure Material | Environment | Protection Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DD321FDKW | 30A | NEMA 12, NEMA 3R | 3 | 240V | 3 | Galvanized Steel | - | - | €1,091.24 | |
 |
DH221FGKV | 30A | NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €691.68 | |
 |
DH221FDK | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €1,385.08 | |
|
DH221FDKV | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | - | RFQ
|
 |
DH221FGK | 30A | NEMA 1 | 2 | 240V | 2 | Steel | - | - | €155.06 | |
|
DH221FRKV | 30A | NEMA 3R | - | 240V | 2 | - | - | - | €1,300.13 | |
 |
DH221FWKV | 30A | NEMA 4X | 2 | 240V | 2 | Stainless Steel | - | - | €4,411.78 |
