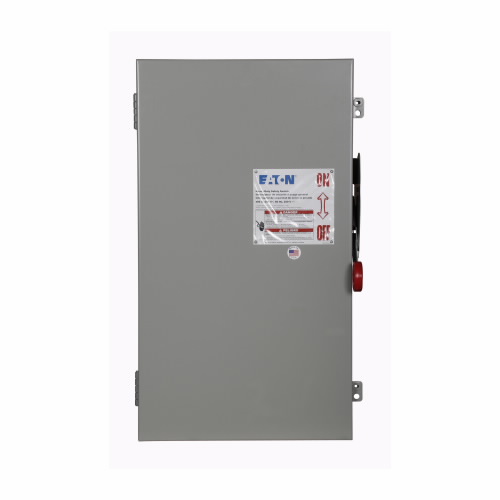

EATON DH224NGK Single Throw Safety Switch With Neutral, 240 VAC, 200A, DPST Contact, 2P
Get it by Tuesday, Dec 23
€2,623.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 200A |
| Enclosure Material | Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible With Neutral |
| Height | 9 1/2" |
| Length | 30" |
| Max. Hp Rating | 15, 25 Hp/15, 60 Hp/40 Hp (1, 3PH @ Std Fuse/time Delay/250V DC) |
| Nema Enclosure Rating | NEMA 1 |
| Notes | 3-Phase HP Ratings Shown Are Grounded B Phase Ratings, UL Listed |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Special Features | Enhanced Visible Blade |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 18" |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 45.72 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Nema Enclosure Rating | Number Of Wires | Voltage | Number Of Poles | Enclosure Material | Environment | Protection Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DD321FDKW | 30A | NEMA 12, NEMA 3R | 3 | 240V | 3 | Galvanized Steel | - | - | €1,091.24 | |
 |
DH221FGKV | 30A | NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €691.68 | |
 |
DH221FDK | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | €1,385.08 | |
|
DH221FDKV | 30A | NEMA 12, NEMA 3R | 2 | 240V | 2 | Galvanized Steel | - | - | - | RFQ
|
 |
DH221FGK | 30A | NEMA 1 | 2 | 240V | 2 | Steel | - | - | €155.06 | |
|
DH221FRKV | 30A | NEMA 3R | - | 240V | 2 | - | - | - | €1,300.13 | |
 |
DH221FWKV | 30A | NEMA 4X | 2 | 240V | 2 | Stainless Steel | - | - | €4,411.78 |
