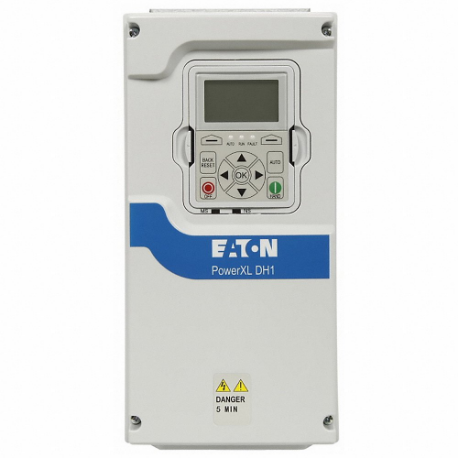

EATON DH1-32011FN-C21C Variable Frequency Drive, 230 VAC, 3 hp Max Output Power, 11 A Max Output Amp., IP21
Get it by Thursday, Dec 18
10.00% off
€1,963.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Variable |
| Adjustable Acceleration Time | 0.1 sec. to 3000 sec. |
| Adjustable Deceleration Time | 0.1 sec. to 3000 sec. |
| Application | HVAC AC Drive |
| Brake Chopper Included | No |
| Bypass Included | Yes |
| Color | White |
| Control Method | Keypad |
| Control Type | Keypad |
| Digital Readout | Continuous Output Current, Frequency Resolution, Initial Output Current, Output Frequency, Output Voltage, Overload Current |
| Display Type | LCD |
| Dynamic Braking | Yes |
| Enclosure | Open |
| Enclosure Rating | IP21 |
| Enclosure Type | Open |
| Ethernet Port Included | No |
| Form Factor | 0.01 Hz Resolution |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Phase Ac | 3 |
| Input Type | Analog, Digital |
| Input Voltage | 230V AC |
| Input Voltage Range | 208-240V AC |
| Max. Output Amps | 11A |
| Maximum Output Power | 3 hp |
| No. Of Inputs | 10 |
| No. Of Output | 6 |
| Number Of Inputs | 8 Digital Inputs, 2 Analog Inputs |
| Number Of Outputs | (3) Relay Out, (1) Digital Out, (2) Analog Out |
| Output Frequency | 0-400 Hz |
| Output Frequency Range | 0-400 Hz |
| Output Phase | 3 |
| Output Power | 3 hp |
| Output Type | Analog, Digital |
| Output Voltage | 208-240V AC |
| Output Voltage Range | 208-240V AC |
| Overall Depth | 12 7/8" |
| Overall Height | 7 7/8" |
| Overall Width | 6" |
| Protection | Dc Bus Overvoltage, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Underload, Overcurrent, Overvoltage, Short-Circuit Protection Of 24 V Reference Voltage, Surge, Undervoltage, Unit Overtemperature |
| Series | POWERXL DH1 Series |
| Start/stop Control | Automatic, Manual, Via Communication |
| Style | HVAC Compact AC Drive |
| Torque Application | Constant Torque, Variable Torque |
| With Bypass/no Bypass | With Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 20 |
| Ship length (cm) | 32.7 |
| Ship width (cm) | 15.24 |
| Country of Origin | DO |
Product Variants
| Product | Model | Output Voltage | Enclosure Rating | Input Phase | Input Voltage | Output Power | Color | Control Method | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13E632 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | Black, Gray | Dial | 5 7/8" | €576.21 | |
 |
13E633 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | White | Dial | 5 7/8" | €606.51 | |
 |
13E634 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | Black, Gray | Dial | 7 1/4" | €718.80 | |
 |
13E635 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | White | Dial | 7 1/4" | €747.23 | |
|
13E636 | 230V AC | NEMA 4X | 1 | 230V AC | - | Black, Gray | Dial | 7 1/4" | €760.76 | |
|
13E637 | - | - | 1 | - | - | - | - | - | €789.18 | |
|
13E638 | 230V AC | NEMA 4X | 1, 3 | 230V AC | - | Black, Gray | Dial | 7 1/4" | €932.12 |
