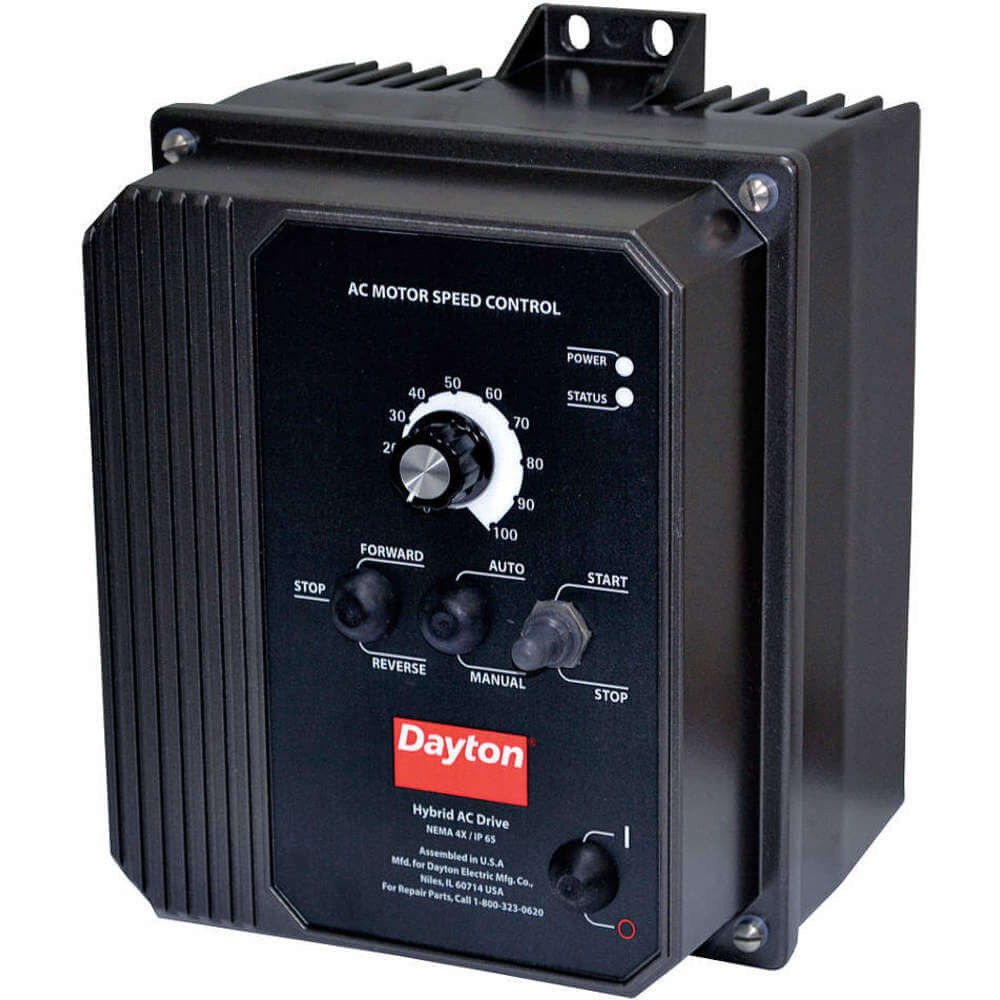

DAYTON 13E634 Variable Frequency Drive 2hp 115/208-230v
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€646.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Variable Frequency Drive |
| Accepts Input Control Signal | With Signal Isolator Option |
| Adjustable Acceleration Time | 0.3 sec. to 20 sec. |
| Adjustable Deceleration Time | 0.3 sec. to 20 sec. |
| Color | Black, Gray |
| Control Method | Sensor less Flux Vector with Static Auto Tune with Boost, Volts per Hertz |
| Control Method | Dial |
| Control Type | Dial |
| Depth | 7 1/4" |
| Digital Readout | No |
| Display Type | LED |
| Displays | LED Touch Screen |
| Displays | Status Indicator |
| Dynamic Braking | Injection Braking |
| Enclosure | Totally Enclosed |
| Enclosure Material | Aluminum |
| Enclosure Rating | NEMA 4X |
| Height | 9 4/5" |
| Input Frequency | 50/60 Hz |
| Input Phase | 1 |
| Input Phase Ac | 1 |
| Input Voltage | 115/230V AC |
| Key Pad Lockout | None |
| Max. Hp | 2 hp |
| Max. Output Amps | 6.7A |
| Maximum Output Power | 2 hp |
| Output Frequency Range | 0 to 60/120 Hz |
| Output Frequency Range | 0-120 Hz |
| Output Phase Ac | 3 |
| Output Voltage | 230V AC |
| Overall Depth | 7 1/4" |
| Overall Height | 9 3/4" |
| Overall Width | 7 1/2" |
| Protection | Electronic Inrush Current Limit (EICL), Ride Through, Regeneration Protection, Overload, Current Limit, Short Circuit, Overvoltage, Undervoltage, Nuisance Tripping, Mov Input Transient Suppression |
| Standards | Ul, Csa, Ce |
| Start/stop Control | Manual |
| Start/stop Control | Start/Stop Switch Std |
| Starting Torque | 200% |
| Torque @ 1 Hz | 100% |
| Width | 7.55" |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 5.36 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 19.05 |
| HS code | 8504404000 |
| Country of Origin | US |
Product Details:
- Output Phase AC (3)
Product Variants
| Product | Model | Output Voltage | Enclosure Rating | Input Phase | Input Voltage | Output Power | Color | Control Method | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

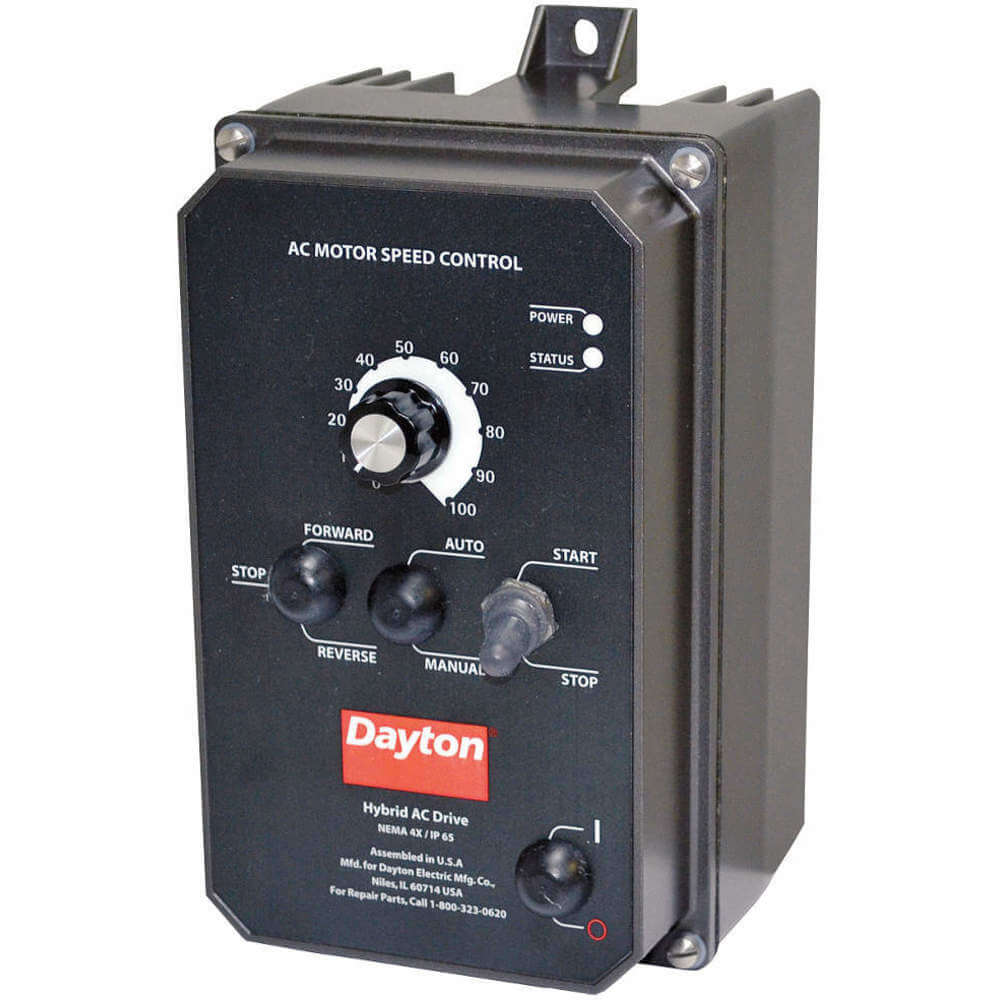

13E632 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | Black, Gray | Dial | 5 7/8" | €576.21 | |
 |

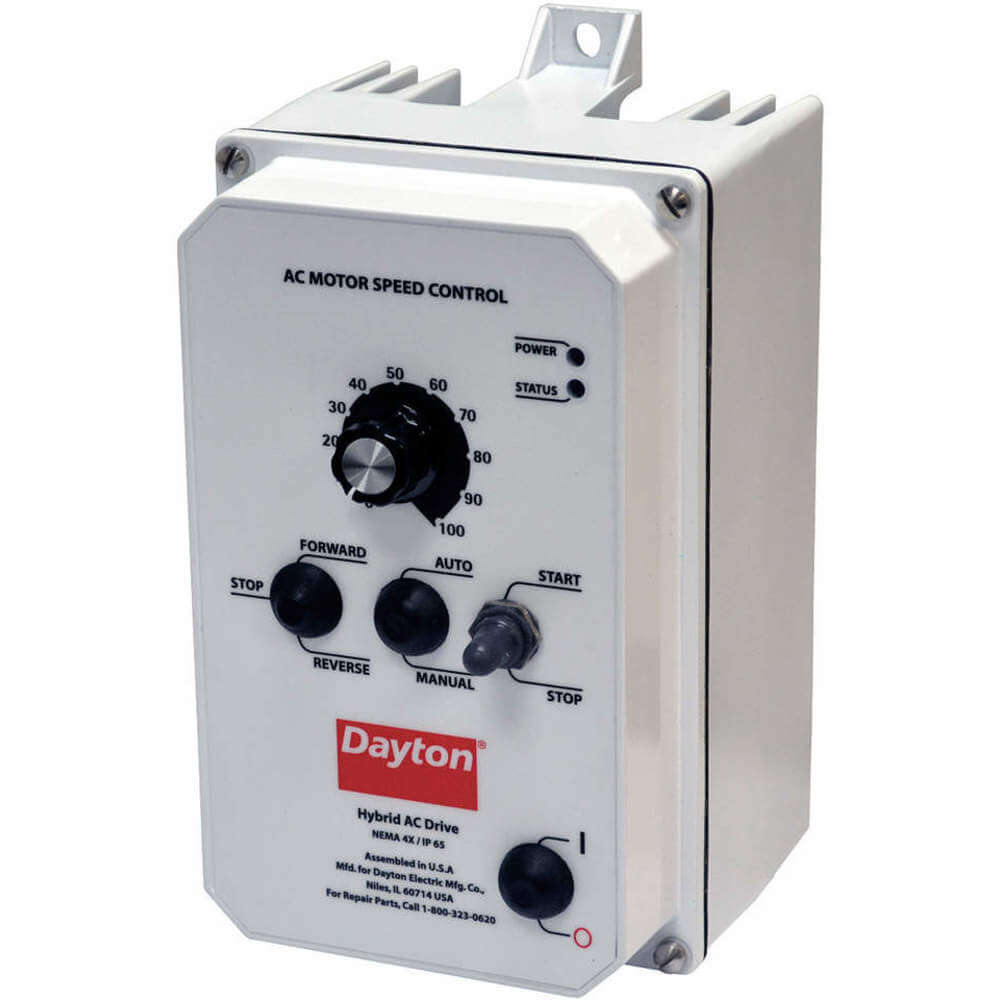

13E633 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | White | Dial | 5 7/8" | €606.51 | |
 |

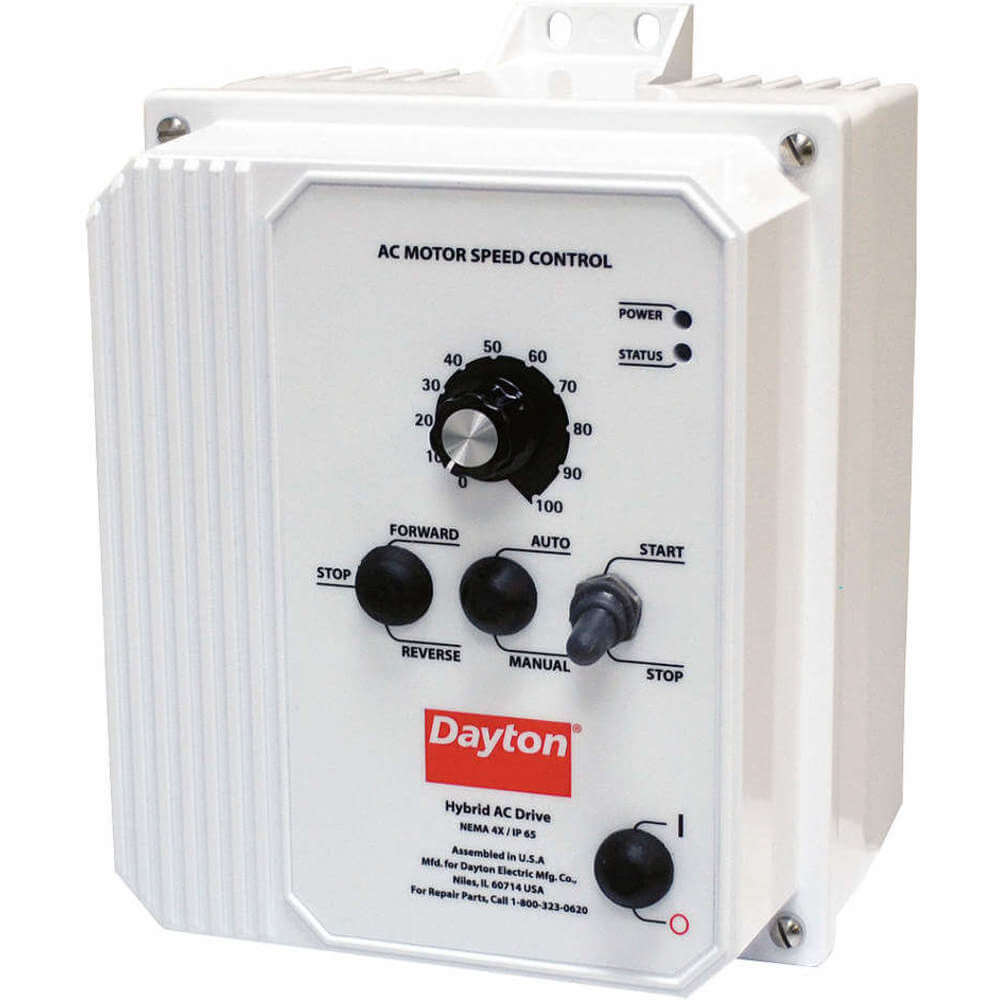

13E635 | 230V AC | NEMA 4X | 1 | 115/230V AC | - | White | Dial | 7 1/4" | €747.23 | |
|
13E636 | 230V AC | NEMA 4X | 1 | 230V AC | - | Black, Gray | Dial | 7 1/4" | €760.76 | |
|
13E637 | - | - | 1 | - | - | - | - | - | €789.18 | |
|
13E638 | 230V AC | NEMA 4X | 1, 3 | 230V AC | - | Black, Gray | Dial | 7 1/4" | €932.12 | |
|
13E639 | 230V AC | NEMA 4X | 1, 3 | 230V AC | - | White | Dial | 7 1/4" | €793.29 |
