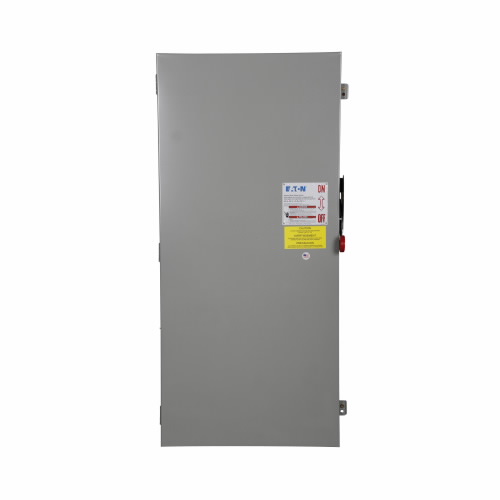

EATON DG226FGK General Duty Cartridge Fuse Safety Switch, 600 A, Nema 1, Painted Steel, Class H Fuses
Get it by Tuesday, Sep 1
€12,996.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 600A |
| Enclosure Material | Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible Without Neutral |
| Height | 52 1/4" |
| Length | 14 1/4" |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Poles | 2 |
| No. Of Wires | 2 |
| Notes | Maximum HP Ratings Apply Only When Dual Element Fuses Are Used. Solid Neutral Bars Are Not Included. Must Be Ordered Separately. |
| Type | General Duty, Cartridge Fused |
| Voltage | 240V |
| Width | 24" |
Shipping Info:
| Ship weight (kg) | 65.25 |
| Ship height (cm) | 132.72 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 60.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Voltage | Height | No. Of Poles | Enclosure Material | Depth | No. Of Wires | Fuse Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DG221NGB | 30A | 240V | 10.23" | 2 | - | - | 3 | Fusible With Neutral | €130.13 | |
|
DG221NGBLORED | 30A | 120/240V | 6 22/25" | - | - | - | 3 | Fusible With Neutral | €1,099.03 | |
 |
DG222NGB | 60A | 240V | 14.19" | 2 | - | - | 3 | Fusible With Neutral | €153.80 | |
|
DG222NGBP | 60A | 240V | 13.93" | 2 | - | - | 3 | Fusible With Neutral | €549.51 | |
 |
DG222NRB | 60A | 240V | 14.37" | 2 | Galvanized Steel | - | 3 | Fusible With Neutral | €1,051.75 | |
 |
DG221NRB | 30A | 240V | 10.81" | 2 | Galvanized Steel | - | 3 | Fusible With Neutral | €189.07 | |
 |
DG223NGB | 100A | 240V | 18.81" | 2 | Steel | - | 3 | Fusible With Neutral | €369.18 |
