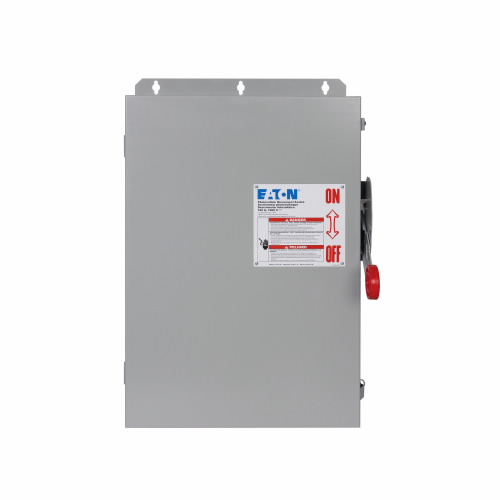

EATON DCU2103URM Heavy Duty Ungrounded System Solar DC Disconnect, 1000 VDC, 100A, 2P
Get it by Thursday, Dec 18
€4,080.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disconnect |
| Application | Solar |
| Current Rating | 100A |
| Enclosure Material | Galvanized Steel |
| Ground | Ungrounded |
| Height | 24.95" |
| Main Lug Wire Size | #14 AWG to 1/0 AWG |
| Nema Enclosure Rating | NEMA 3R |
| Note | Not All Configurations For Ampere Rating And Number Of Circuits Are Available. All Circuit Configurations Can Be Found In The Product Dimension Tables. |
| Product Name | Eaton Heavy Duty DC Disconnect |
| Series | Series DC Photovoltaic Applications |
| Switch Type | Heavy Duty |
| Type | DC Disconnect/ungrounded System |
| Voltage Rating | 1000V DC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 16.13" |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 63.37 |
| Ship length (cm) | 25.96 |
| Ship width (cm) | 40.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Current Rating | Height | Number Of Poles | Price | |
|---|---|---|---|---|---|---|
 |
DCG1101UXM | 30A | - | - | €6,967.26 | |
|
DCG1101UWM | 30A | 14.14" | - | €4,806.01 | |
 |
DCG1101UPM | 30A | 14.14" | - | €4,544.05 | |
 |
DCG1103URM | - | 21.99" | - | €2,309.78 | |
|
DCG1102UPM | 60A | 14.14" | - | €2,235.88 | |
|
DCG1102UWM | 60A | 14.14" | - | €4,368.57 | |
|
DCG1102UXM | 60A | 14.14" | - | €8,132.71 |
