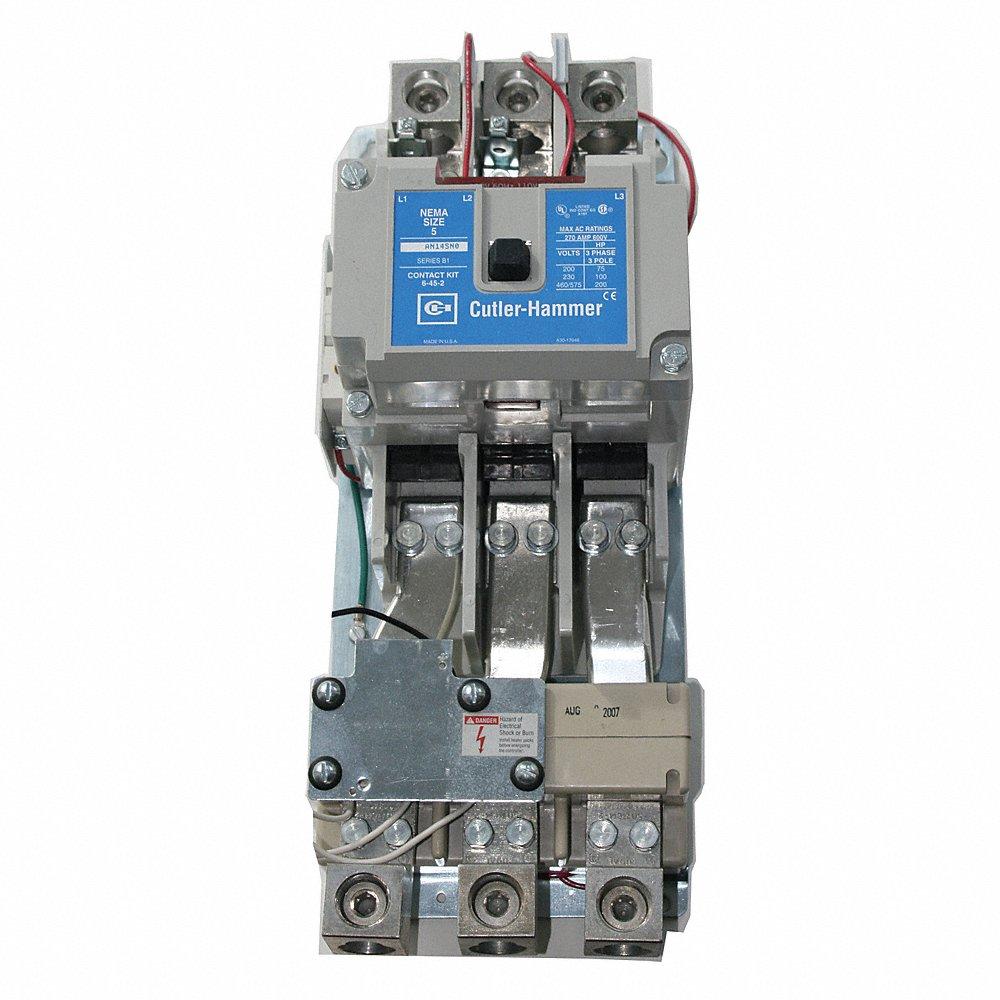

EATON CN15SN3T NEMA Magnetic Contactor, Non-Reversing, 3 Poles, NEMA Size 5, 270 A, 24 VAC
Get it by Tuesday, Sep 1
5.00% off
€17,643.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 24V AC |
| Contactor Style | NEMA |
| Depth | 21 3/5" |
| Electrical Operating Durability | 34000 (AC-4), 500000 (AC-3) |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | S |
| Frequency | 50/60 Hz |
| Full Load Inductive Amps | 270A |
| Height | 9 1/2" |
| Hp @ 3 Phase-208v | 75 hp |
| Hp @ 3 Phase-240v | 100 hp |
| Hp @ 3 Phase-480v | 200 hp |
| Hp @ 3 Phase-575v | 200 hp |
| Hp @ 3 Phase-600v | 200 hp |
| Included Auxiliary Contacts | Yes |
| Main Power Pole Contact Form | 3NO |
| Max. Operating Temp. | 149°F |
| Max. Voltage | 600V AC |
| Mechanical Operating Durability | 5000000 |
| Min. Operating Temp. | -4°F |
| Mounting Hole Dia. | 1/4" |
| Mounting Hole Distance | 6 1/2" |
| Mounting Hole Width | 6" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Panel |
| Nema Enclosure Material | Not Applicable |
| Nema Size | 5 |
| No. Of Auxillary Contacts | 1 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Overall Depth | 7.78" |
| Overall Height | 13 3/25" |
| Overall Width | 7.05" |
| Phase | 3 |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Response Time | 25 ms |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | Freedom Series |
| Terminal Connection Type | Screw Terminal |
| Width | 12.3" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 12.46 |
| Ship height (cm) | 33.32 |
| Ship length (cm) | 19.76 |
| Ship width (cm) | 17.91 |
| Country of Origin | US |
Product Variants
| Model | Height | Phase | Coil Voltage | Frequency | Nema Size | Amps | No. Of Poles | Hp @ 3 Phase-208v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CN15AN3AB | 3 22/25" | 3 | - | 50/60 Hz | 00 | 9A | 3 | 1 1/2 hp | €360.88 | |
| CN15AN3CB | 3 22/25" | 3 | 440-480V AC | 50/60 Hz | 00 | 9A | 3 | 1 1/2 hp | €854.76 | |
| CN15AN3TB | 4 1/2" | 3 | 24V AC | 50/60 Hz | 00 | 9A | 3 | 1 1/2 hp | €838.16 | |
| CN15AN3BB | 3 22/25" | 3 | 220-240V AC | 50/60 Hz | 00 | 9A | 3 | 1 1/2 hp | €816.67 | |
| CN15AN3EB | 3 22/25" | 3 | 208V AC | 60 Hz | 00 | 9A | 3 | 1 1/2 hp | €836.42 | |
| CN15BN3BB | 3 22/25" | 3 | 220/240V AC | 50/60 Hz | - | 18A | 3 | 3 hp | €993.95 | |
| CN15BN3EB | 3 22/25" | 3 | 208V AC | 60 Hz | - | 18A | 3 | 3 hp | €1,069.28 |
