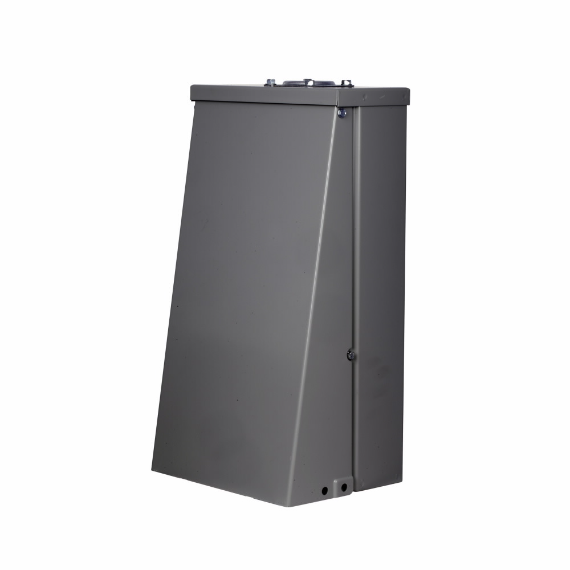

EATON CHUAG8NFGPTZ Unmetered Power Outlet Pedestal, 125/250 VAC, 20/30/50 A
Get it by Tuesday, Feb 24
€1,185.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Unmetered Surface Power Outlet |
| Accessories | Factory Installed Pedestal Extension With Lay-In Ground Lug |
| Circuit Breaker Position 1 | Ground Fault |
| Circuit Breaker Position 2 | Non Ground Fault |
| Circuit Breaker Position 3 | Ground Fault |
| Depth | 6 4/5" |
| Feed Type | Top |
| Height | 39.9" |
| Mounting | Pedestal |
| No. Of Circuits | 4 |
| Number Of Circuits | 4 |
| Product Datasheet | eaton-mbicvr33.pdf |
| Receptacle Center | NEMA 5-20R2GFI |
| Receptacle Left | NEMA L14-50R |
| Receptacle Right | NEMA L5-30R |
| Type | Unmetered |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 9 1/2" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 101.35 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Height | Depth | Type | Circuit Breaker Position 1 | Circuit Breaker Position 2 | Feed Type | Receptacle Right | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CH5G5G5GPXTZ | 66" | 7 1/4" | Ground Fault | - | - | - | - | - | €2,297.28 | |
 |
CHU7N7N5GPXL | 39.9" | 6 4/5" | Unmetered | Non Ground Fault | Non Ground Fault | Top | NEMA 6-20R2 | Pedestal | €2,187.44 | |
 |
CHU1N7N4NPXLTZ | 52" | 6 4/5" | Unmetered | Non Ground Fault | Non Ground Fault | Top | NEMA TT-30R | Pedestal | €1,984.42 | |
 |
CHU1N5G4NBX | 39.9" | 13 3/5" | Unmetered | Non Ground Fault | Ground Fault | Top | NEMA TT-30R | Back To Back Pedestal | €2,850.21 | |
 |
CHU1N6N4NPX | 7.38" | 40.63" | Unmetered | Non Ground Fault | Non Ground Fault | Top | NEMA TT-30R | - | €1,486.39 | |
 |
CHUFN7NFNPL | 39.9" | 6 4/5" | Unmetered | Non Ground Fault | Non Ground Fault | Top | NEMA L5-30R | Pedestal | €1,119.91 | |
 |
CHU3N6GP | 39.9" | 13 3/5" | Unmetered | Non Ground Fault | Ground Fault | - | - | Pedestal | €616.77 |
