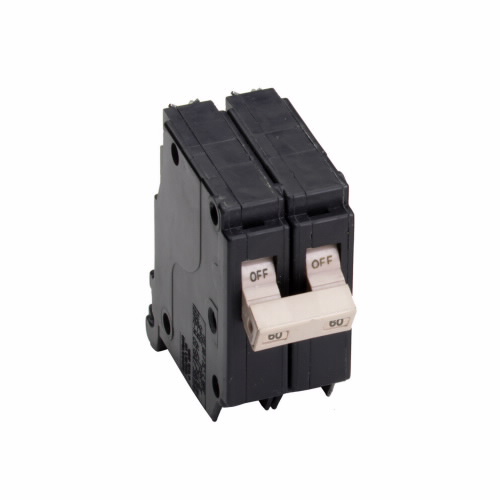

EATON CHF260 Thermal Magnetic Circuit Breaker, Type Ch, 60 A, 2-Pole, 120/240V, #14-2 Awg Cu/Al
Item: BJ8HWQModel: CHF260Cross Ref: 60JL48
7 In Stock
Ships within 2 days via
10.00% off
€55.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amperage Rating | 60A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | CH Series |
| Dc Voltage Rating | Not Rated |
| Depth | 3.5" |
| For Use With | Type CH Loadcenters |
| Height | 3 1/2" |
| Interrupt Rating | 10 kAIC |
| Length | 3" |
| Main Circuit Breaker | CH |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 14 AWG |
| Notes | HACR Rated, Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces |
| Number Of Poles | 2 |
| Phase | Single |
| Type | Type CH 3/4-Inch Standard Circuit Breaker |
| Voltage | 120/240V |
| Width | 1 1/2" |
| Wire Size | #14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Circuit Breaker Type | Voltage | Ac Voltage Rating | Phase | Min. Wire Size | Dc Voltage Rating | Circuit Breaker Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CHH2150H4X | 2 | - | 120/240V | - | - | - | - | - | €1,105.29 | |
 |
CHH2100H4X | 2 | - | 120/240V | - | - | - | - | - | €1,105.29 | |
|
CHH2175H4X | 2 | - | 120/240V | - | - | - | - | - | €1,386.51 | |
|
CHH2200H4X | 2 | - | 120/240V | - | - | - | - | - | - | RFQ
|
 |
CH2100CS | 2 | CH | 120/240V | - | - | - | - | - | €542.61 | |
 |
CH2110CS | 2 | CH | 120/240V | - | - | - | - | - | €1,021.45 | |
 |
CH2125CS | 2 | CH | 120/240V | - | - | - | - | - | - | RFQ
|
