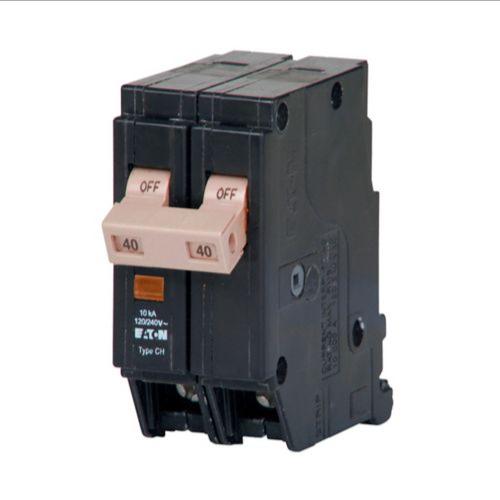

EATON CHF240 Thermal Magnetic Circuit Breaker, Type Chf, 40 A, 10 Kaic, 2-Pole, 120/240V, Trip FLAg
Item: BJ8JTGModel: CHF240Cross Ref: 60JL53
7 In Stock
Ships within 2 days via
10.00% off
€49.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amperage Rating | 40A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | CH Series |
| Dc Voltage Rating | Not Rated |
| Depth | 2.6" |
| For Use With | Type CH Loadcenters |
| Height | 2 3/5" |
| Interrupt Rating | 10 kAIC |
| Length | 1 1/2" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 10 AWG |
| Notes | HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication |
| Number Of Poles | 2 |
| Phase | Single |
| Type | Type CHF 3/4-Inch Standard Circuit Breaker |
| Voltage | 120/240V |
| Warranty | Limited Lifetime Residential, 1 Year Commercial |
| Width | 1 1/2" |
| Wire Size | #10 AWG to 1/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 8.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Circuit Breaker Type | Voltage | Min. Wire Size | Ac Voltage Rating | Phase | Amps | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CHF115F | 1 | CHF | 120/240V | - | - | - | - | - | €229.47 | |
 |
CHF115 | 1 | Standard | 120/240V | 14 AWG | 120/240V AC | Single | - | Not Rated | €21.04 | |
|
CHF120F | 1 | CHF | 120/240V | - | - | - | - | - | - | RFQ
|
|
CHF110 | 1 | CHF | 120/240V | - | - | - | - | - | - | RFQ
|
 |
CHF125ST | 1 | CHF | 120/240V | - | - | - | - | - | €613.99 | |
 |
CHF120 | 1 | Standard | 120/240V | 14 AWG | 120/240V AC | Single | - | Not Rated | €21.04 | |
 |
CHF130ST | 1 | CHF | 120/240V | - | - | - | - | - | €360.01 |
