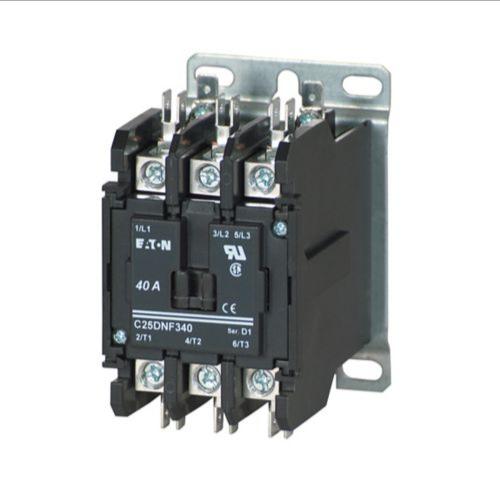

EATON C25DNF340T Definite Purpose Contactor, 40A, 24 Vac, 15-50A, 2 And 3-Pole, 3-Pole, 50A, Non-Reversing
Item: BJ7ZRHModel: C25DNF340TCross Ref: 49C084
7 In Stock
Ships within 2 days via
10.00% off
€161.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Definite Purpose Contactor |
| Amps Range | 15-50A |
| Amps Rating | 40A |
| Auxiliary Contact Module Capacity | 4 |
| Coil Voltage | 24V AC |
| Connection | Quick |
| Contactor Frame Size | Compact |
| Enclosure Type | Open With Metal Mounting Plate |
| Frequency | 50/60 Hz |
| Full Load Current - Inductive | 40A |
| Full Load Current - Resistive | 50A |
| Horsepower @ Single Phase - 120v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 10 hp |
| Horsepower @ Three Phase - 240v Ac | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 20 hp |
| Horsepower @ Three Phase - 600v Ac | 20 hp |
| Hp @ Single Phase - 240v Ac | 7 1/2 hp |
| Includes | Mounting Plate |
| Inductive Full Load | 40A |
| Length | 3.35" |
| Locked Rotor Load | 180A @ 230V |
| Main Pole Contact Form | 3NO |
| Maximum Operating Temperature | 158°F |
| Maximum Voltage Rating | 690V AC |
| Minimum Operating Temperature | -13°F |
| Model | Contactor |
| Mounting Hole Distance - Height | 3.25" |
| Mounting Hole Distance - Width | 2" |
| Mounting Postion | Horizontal, Vertical |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Number Of Poles | 3 |
| Overall Depth | 3.35" |
| Overall Height | 2.3" |
| Overall Width | 2 2/5" |
| Phase | Three |
| Product Height | 2.3" |
| Product Name | Eaton Definite Purpose Contactor |
| Product Width | 2 2/5" |
| Resistive Load | 50A |
| Reversing Capability | Non-reversing |
| Series | C25 Series |
| Terminals | Box Lugs (posidrive Setscrew) And Quick Connect Terminals (side-by-side) |
| Type | Non-Reversing |
| Warranty | 1 yr. |
| Wire Termination Type | Quick Disconnect |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 6.1 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Phase | Hp @ 1 Phase - 240v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Coil Voltage | Depth | Hp @ 1 Phase - 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C25ANB125A | 1 | Single | - | - | - | 110-120V AC | - | - | €100.08 | |
| C25ANB125B | 1 | Single | - | - | - | 208-240V AC | - | - | €100.08 | |
| C25ANB125T | 1 | Single | - | - | - | 24V AC | - | - | €100.08 | |
| C25ANB130A | 1 | Single | - | - | - | 110-120V AC | - | - | €104.92 | |
| C25ANB140B | 1 | Single | - | - | - | 208-240V AC | - | - | €113.99 | |
| C25ANB130B | 1 | Single | - | - | - | 208-240V AC | - | - | €104.92 | |
| C25ANB140A | 1 | Single | - | - | - | 110-120V AC | - | - | €113.99 |
