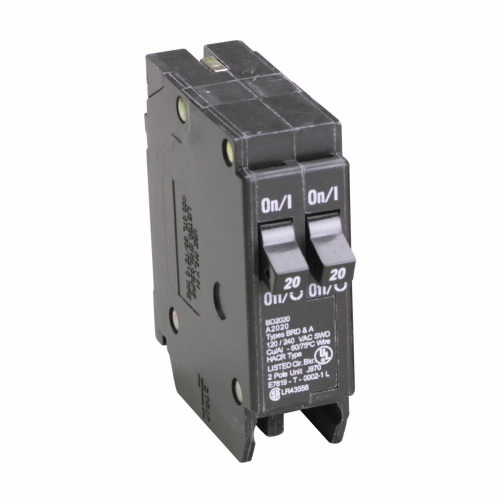

EATON BD2020CS Thermal Magnetic Circuit Breaker, Type Bd, 20-20 A, 10 Kaic, 120V, 1-Pole, #14-4 Awg Cu/Al
Get it by Thursday, Dec 18
€97.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amperage Rating | 20A |
| Circuit Breaker Type | BR |
| Features | Includes Rejection Tab Feature, Clamshell Pack |
| For Use With | Type BR Loadcenters |
| Height | 3" |
| Interrupt Rating | 10 kAIC |
| Length | 3" |
| Main Circuit Breaker | BD |
| Mounting Type | Plug-On |
| Notes | All Type BD Duplex And BQ Quadplex Circuit Breakers Carry Listing For HACR Applications. All 15 And 20 Ampere Single Poles Are Switch Duty Rated. |
| Number Of Poles | 1 |
| Type | Type BD 1-Inch CTL Plug-on Circuit Breaker Clamshell Pack |
| Voltage | 120V AC |
| Warranty | Limited Lifetime Residential, 1 Year Commercial |
| Width | 1" |
| Wire Size | #14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Ac Voltage Rating | Voltage | Min. Wire Size | Max. Wire Size | Phase | Amps | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BQ215215 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215220 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215230 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215240 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215250 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ2202115 | 4 | - | 120/240V at 20A, 120V at 20A | - | - | - | - | - | €102.67 | |
 |
BQ2202120 | 4 | - | 120/240V at 20A, 120V at 15A | - | - | - | - | - | €102.67 |
