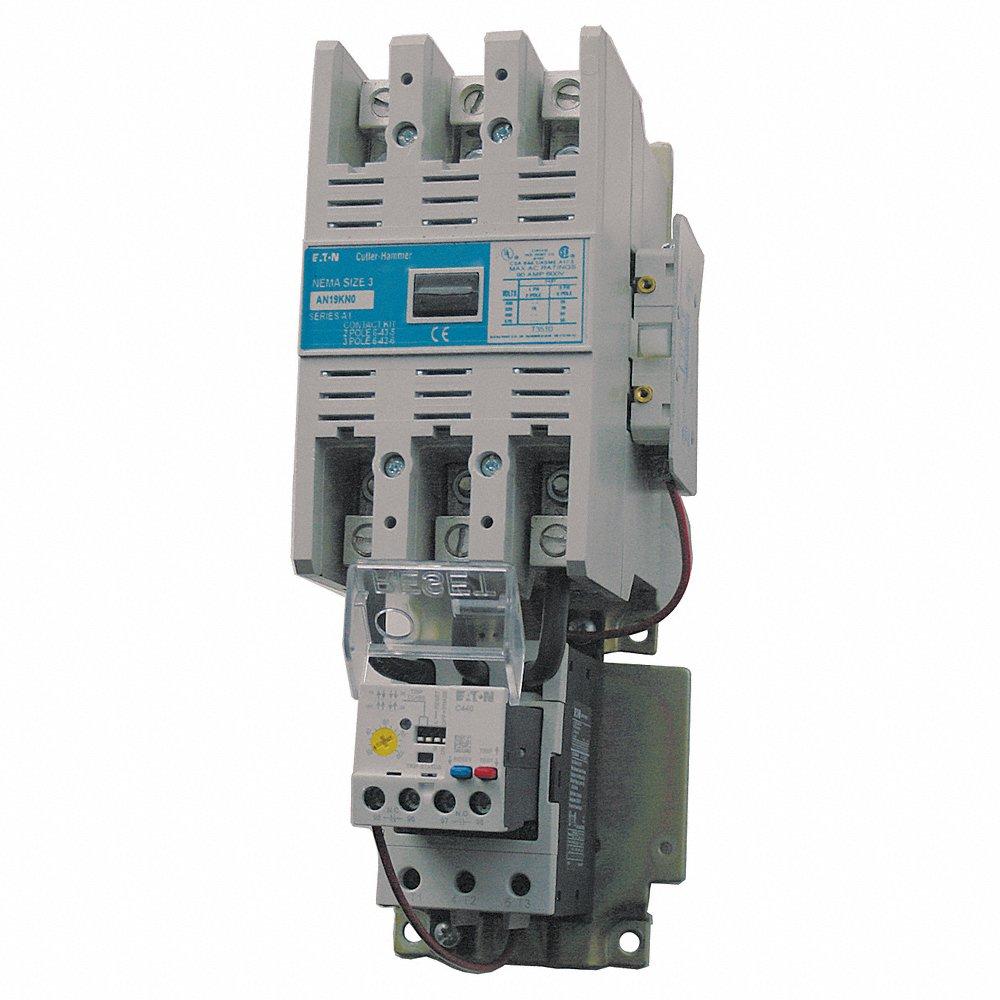

EATON AN19NN0T5E140 NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 4, 135 A, 24 VAC Coil
Get it by Tuesday, Dec 23
10.00% off
€7,114.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 24V AC |
| Frame Size | S4 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 40 hp |
| Horsepower @ Three Phase - 240v Ac | 50 hp |
| Horsepower @ Three Phase - 480v Ac | 100 hp |
| Horsepower @ Three Phase - 600v Ac | 100 hp |
| Includes Auxiliary Contacts | Yes |
| Max Current (ac) | 135A |
| Maximum Overload Relay Current Setting | 140A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 28A |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | 4 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Number Of Poles | 3 |
| Overall Depth | 22" |
| Overall Height | 9 1/2" |
| Overall Width | 12 1/2" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
Shipping Info:
| Ship weight (kg) | 12.29 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 31.75 |
| Country of Origin | DO |
Product Variants
| Model | Nema Size | Coil Voltage | Height | Number Of Poles | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AN19AN0A5E020 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | €884.32 | |
| AN19AN0A5E005 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | €838.01 | |
| AN19AN0A5E1P6 | 00 | 110/120V AC | 6" | 3 | - | - | - | - | €825.38 | |
| AN19AN0C5E005 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | €838.01 | |
| AN19AN0B5E1P6 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | €825.38 | |
| AN19AN0B5E020 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | €884.32 | |
| AN19AN0C5E020 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | €884.32 |
