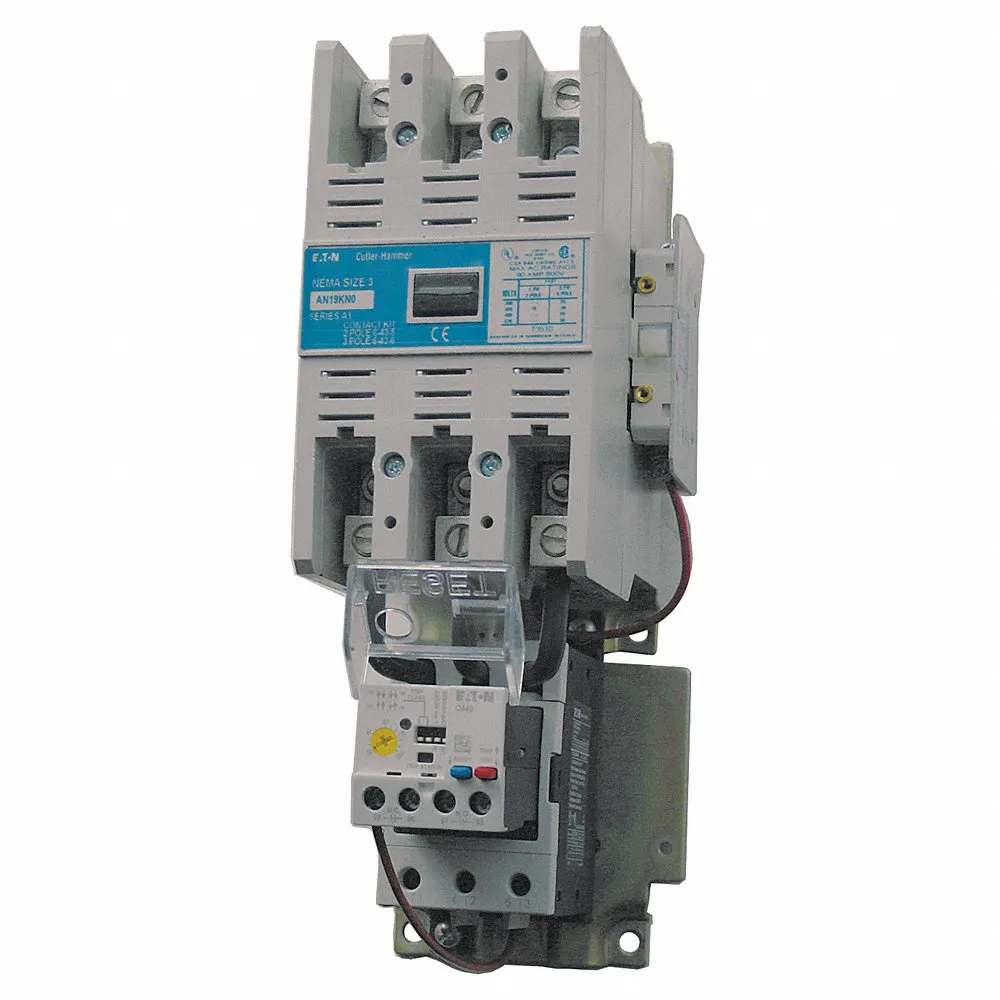

EATON AN19NN0E5E140 Non-Reversing NEMA Starter, Full Voltage, Magnetic, 208 VAC V Coil, 3P, Open Enclosure
Get it by Friday, Dec 19
10.00% off
€7,114.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Accessory Group | Freedom |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 6 |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 208V AC |
| Depth | 7" |
| Enclosure Nema Rating | No Enclosure |
| Features | Auxiliary Contact, Contactor, Electronic Overload |
| Frame Size | S4 |
| Frequency | 60 Hz |
| Height | 17" |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 40 hp |
| Horsepower @ Three Phase - 600v Ac | 100 hp |
| Hp @ 3 Phase - 208v | 40 hp |
| Hp @ 3 Phase - 240v | 50 hp |
| Hp @ 3 Phase - 480v | 100 hp |
| Hp @ 3 Phase - 575v | 100 hp |
| Includes | Auxiliary Contact, Contactor, Electronic Overload |
| Includes Auxiliary Contacts | Yes |
| Ip Rating | IP20 |
| Max Current (ac) | 135A |
| Max. Overload Relay Amps Setting | 140A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 28A |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Size | 4 |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Number Of Auxillary Contacts | 1 |
| Number Of Poles | 3 |
| Operator Function | Not Applicable |
| Overall Depth | 7" |
| Overall Height | 17" |
| Overall Width | 7.1" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Status Indicator | LED Indicator |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 7.1" |
Shipping Info:
| Ship weight (kg) | 12.29 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 18.03 |
| Country of Origin | DO |
Product Variants
| Model | Nema Size | Coil Voltage | Height | Number Of Poles | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AN19AN0A5E020 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | €884.32 | |
| AN19AN0A5E005 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | €838.01 | |
| AN19AN0A5E1P6 | 00 | 110/120V AC | 6" | 3 | - | - | - | - | €825.38 | |
| AN19AN0C5E005 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | €838.01 | |
| AN19AN0B5E1P6 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | €825.38 | |
| AN19AN0B5E020 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | €884.32 | |
| AN19AN0C5E020 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | €884.32 |
