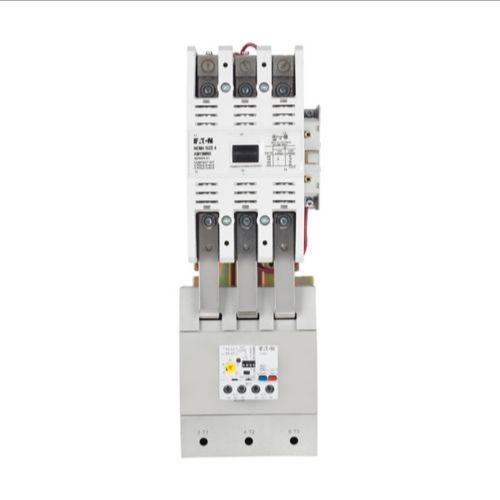

EATON AN19NN0A5E140 Freedom Full Voltage Non-Reversing Nema Starter, 120 VAC V Coil, 3P, Open Enclosure
Item: BJ7JKJModel: AN19NN0A5E140Cross Ref: 41N978
In Stock : 4 Units Get it by Wednesday, Aug 26
5.00% off
€4,354.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amps | 135A |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 110/120V AC |
| Configuration | Non Reversing |
| Frame Size | S4 |
| Frequency | 50/60 Hz |
| Height | 9" |
| Hp @ 1 Ph-240v | Not Rated |
| Hp @ 1 Phase-120v | Not Rated |
| Hp @ 3 Ph-240v | 50 hp |
| Hp @ 3 Ph-480v | 100 hp |
| Hp @ 3 Phase-208v | 40 hp |
| Hp @ 3 Phase-600v | 100 hp |
| Included Auxiliary Contacts | Yes |
| Length | 22" |
| Max. Amps (ac) | 135A |
| Max. Overload Relay Amps Setting | 140A |
| Max. Voltage | 600V AC |
| Min. Overload Relay Amps Setting | 28A |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | 4 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Operator | Not Available |
| Overall Depth | 22" |
| Overall Height | 9" |
| Overall Width | 13" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Relay | C440 Electronic |
| Reversing Capability | Non Reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Type | Starter |
| Width | 13" |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 33.02 |
| Country of Origin | US |
Product Variants
| Model | Coil Voltage | Overall Depth | Overall Height | Height | Nema Enclosure Rating | Amps | Overall Width | Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AN19AN0A5E020 | 110/120V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €941.58 | |
| AN19AN0A5E005 | 110/120V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €838.01 | |
| AN19AN0A5E1P6 | 110/120V AC | 8" | 6" | 6" | No Enclosure | 9A | 4" | 50/60 Hz | €825.38 | |
| AN19AN0C5E005 | 440/480V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €838.01 | |
| AN19AN0B5E1P6 | 220/240V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €825.38 | |
| AN19AN0B5E020 | 220/240V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €884.32 | |
| AN19AN0C5E020 | 440/480V AC | 4.9" | 6 3/5" | 6 3/5" | No Enclosure | 9A | 1.97" | 50/60 Hz | €884.32 |
