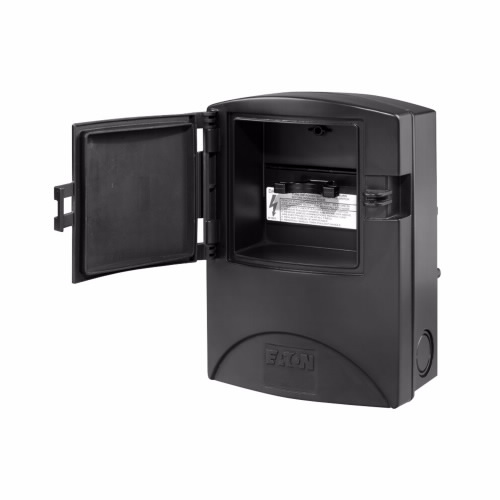

EATON ACD222RNM Fused Pullout Air Conditioning Disconnect, 120/240 VAC, 60A, 3 hp, 2P
Get it by Monday, Dec 22
€243.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disconnect |
| Color | Black |
| Current Rating | 60A |
| Enclosure Material | Polycarbonate |
| Height | 8.63" |
| Hp | 3 hp @ 120V, 10 hp @ 240V |
| Interrupt Rating | 10 kAIC |
| Length | 5" |
| Nema Enclosure Rating | NEMA 3R |
| Note | For Replacement Pullout Head, Order Part Number 96-3258-4. |
| Product Name | Eaton Air Conditioning Disconnect |
| Type | Fused Pullout |
| Voltage Rating | 120/240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 3 1/2" |
| Wire Size | #14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 21.92 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Current Rating | Height | Color | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|
 |
DPB222R | #14 AWG to 3 AWG | - | 8 3/5" | Gray | - | €73.60 | |
 |
DPB222RP | #14 AWG to 3 AWG | 60A | 8 3/5" | Gray | - | €649.55 | |
 |
DPF221R | #14 AWG to 3 AWG | 30A | 8 3/4" | Gray | 2 | €70.70 | |
 |
DPF221RGF20WTST | - | - | - | - | - | €1,089.62 | |
 |
DPF222RGF20WTST | - | - | - | - | - | €1,044.71 | |
 |
DPF221RGF15WTST | - | - | - | - | - | €1,025.33 | |
 |
DPF221RP | #14 AWG to 3 AWG | 30A | 8.7" | Gray | - | €496.72 |
