EATON 83E3554 Molded Case Circuit Breaker, Aqb-A101 Breaker, 3-Pole, 15A, 500 V, 250 Vdc, 2A-2B, 60 Hz
Get it by Tuesday, Dec 23
€6,799.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amperage Rating | 15A |
| Auxiliary Switch | 2A-2B |
| Circuit Breaker Frame Type | Complete Breaker |
| Circuit Breaker Type | AQB-A101 |
| Class | Naval |
| Frequency Rating | 60 Hz |
| Height | 5 4/5" |
| Interrupt Rating | 15 kAIC at 500V AC, 10 kAIC at 250V DC |
| Length | 7 1/4" |
| Magnetic Trip Range | 180-210A at High Setting, 75-105A at Low Setting |
| Number Of Poles | 3 |
| Product Datasheet | eaton-83e3554.pdf |
| Trip Rating | 75-210A/75-105A |
| Trip Type | Thermal-magnetic |
| Voltage | 500V AC/250V DC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 5 4/5" |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 14.73 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Circuit Breaker Type | Voltage | Type | Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
1230C83G06 | 3 | AQB-L400QM | 500V | Accessories And Terminals | Frame J-K | €75,781.59 | RFQ
|
|
1230C83G05 | 3 | AQB-LL400QS | 500V | Accessories And Terminals | Frame J-K | €75,781.59 | RFQ
|
 |

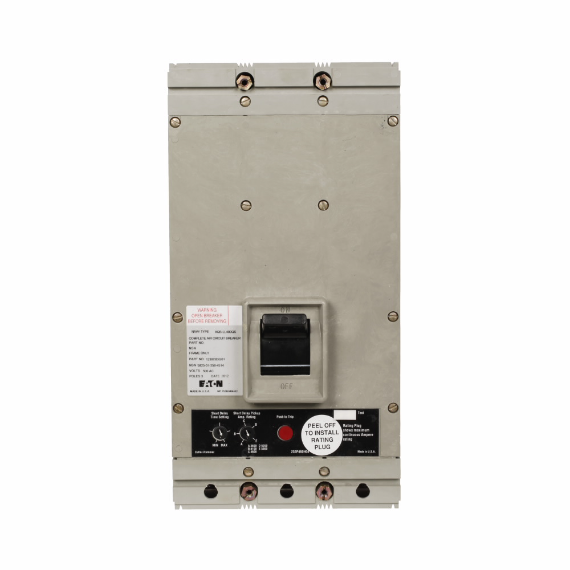

1241C32G01 | 3 | AQB-LL400QS | 500V AC | - | - | €74,158.05 | |
 |
1241C32G04 | 3 | AQB-LL400QS | 500V AC | - | - | €74,158.05 | |
|
1241C33G04 | 3 | AQB-LL400QS | 500V AC | - | - | €83,345.43 | |
|
1241C32G02 | 3 | AQB-LL400QS | 500V AC | - | - | €74,158.05 | |
|
1241C34G38 | 3 | AQB-LL400QS | 500V AC | - | - | €83,345.43 |
