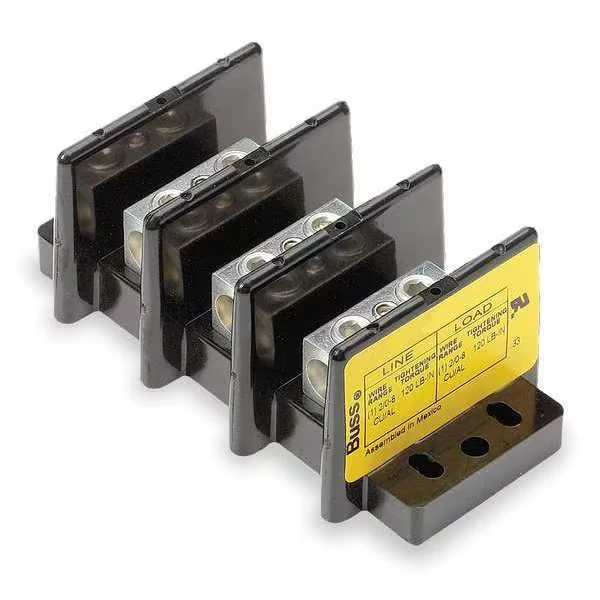

EATON 16003-3 Pwr Dist Block, 255A, 3P, 6AWG-250 MCM, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Application | Power Distribution |
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 2 3/25" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| For Line Copper Wire Size - Maximum | 250 kcmil |
| For Line Copper Wire Size - Minimum | 6 AWG |
| For Load Aluminum Wire Size - Maximum | 250 kcmil |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| For Load Copper Wire Size - Min. | 6 AWG |
| For Maximum Line Wire Size | 250 kcmil |
| For Maximum Load Wire Size | 250 kcmil |
| Housing Color | Black |
| Length | 2 4/5" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 255A |
| Maximum Current | 255A |
| Maximum Current - Copper Conductor | 255A |
| Number Of Circuits | 3 |
| Overall Depth | 2.66" |
| Overall Length | 5.37" |
| Overall Width | 2.66" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 1 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 5.37" |
Shipping Info:
| Ship length (cm) | 7.11 |
| Ship width (cm) | 13.64 |
