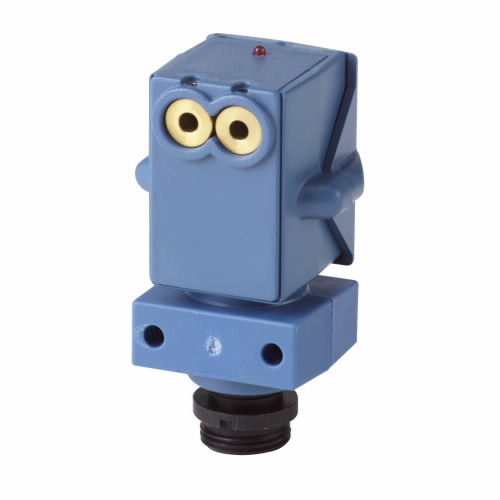

EATON 1550B-6507 Photoelectric Sensor, Distance 250 mA Max Dc, 250 mA At 30 VDC, 10-30 VDC
Get it by Tuesday, Sep 1
€839.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 4-pin Dual Key Micro Connector |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 250 MA at 30V DC |
| Enclosure Lens Material | Nylon |
| Enclosure Material | Noryl |
| Height | 3.19" |
| Input Voltage | 10-30V DC |
| Led Indicator | Output Status, Red |
| Length | 1 16/25" |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4 |
| Notes | Glass Fiber Optic Cables Not Included |
| Product Name | Eaton 50 Series Photoelectric Sensor |
| Protection Type | Reverse Polarity |
| Sensor Type | Fiberoptic |
| Switch Type | Photoelectric |
| Width | 1.83" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 4.17 |
| Ship width (cm) | 4.65 |
| Country of Origin | US |
Product Variants
| Model | Input Voltage | Height | Sensor Type | Max. Amps | Min. Operating Temp. | Contact Configuration | Contact Rating | Operating Mode | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1250B-6501 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,194.77 | |
| 1250B-6502 | 180-264V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,246.14 | |
| 1250B-6507 | 10-30V DC | 3.19" | Through Beam | 250 mA | -22°F | NPN And PNP Open Collector | 250 MA at 30V DC | Thru Beam | - | RFQ
|
| 1250B-6511 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,135.54 | |
| 1250BS9352 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,318.41 | |
| 1250B-6517 | 10-30V DC | 3.19" | Through Beam | 250 mA | -22°F | NPN And PNP Open Collector | 250 MA at 30V DC | Thru Beam | €1,045.20 | |
| 1250B-6512 | 180-264V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,135.54 |
