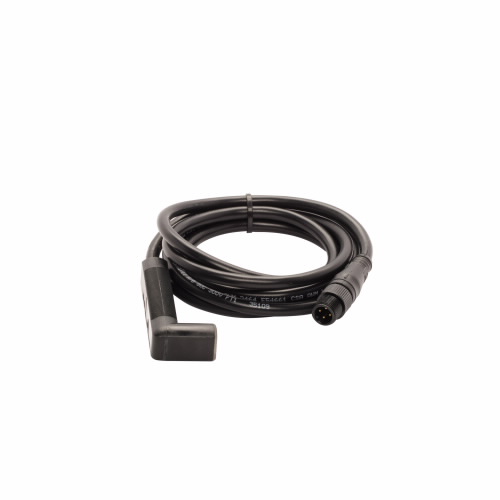

EATON 14151RS7258 Photoelectric Sensor, 80 mA Ac/100 mA Dc At 20-132V, 4 Pin, Isolated Ssr, 10-30 VDC
Get it by Thursday, Aug 27
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | M12 |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 80 MA AC/100 MA DC at 20-132V |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Input Voltage | 10-30V DC |
| Led Indicator | Output On |
| Length | 2 3/4" |
| Max. Amps | 100 mA , 80 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 4 |
| Product Name | Eaton OEM Prism 18mm Tubular Photoelectric Sensor |
| Protection Type | Protected For Loads < 32 V AC Or 2 V DC |
| Sensor Type | Polarized Retroreflective |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Led Indicator | Sensor Type | Cord Length | Max. Amps | Operating Mode | Accessories | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11155AA07 | 2.35" | Structural Polyurethane Foam | Power On, Red | Through Beam | 8" | - | Thru Beam | - | €233.23 | |
 |
11155AA17 | 0.71" | Polyurethane | Power | Through Beam | 79.2 ft. | - | Light | - | €126.85 | |
|
11155RA04 | 1 3/4" | Structural Polyurethane Foam | Power On, Red | Through Beam | 8" | - | Thru Beam | - | €207.67 | |
 |
11155AA04 | 2.35" | - | Power On, Red | Through Beam | 8" | - | Thru Beam | - | €207.67 | |
|
11155AA14 | 2.35" | Structural Polyurethane Foam | Power On, Red | Through Beam | 79.2 ft. | - | Thru Beam | - | €194.76 | |
 |
11155RA17 | 2.55" | Structural Polyurethane Foam | Power On, Red | Through Beam | 79.2 ft. | - | Thru Beam | - | €126.85 | |
|
11155RA14 | 2.55" | Structural Polyurethane Foam | Power On, Red | Through Beam | 79.2 ft. | - | Thru Beam | - | €185.46 |
