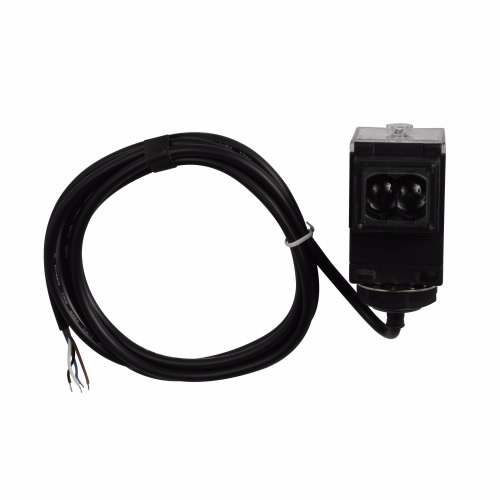

EATON 1351E-8517 Photoelectric Sensor, 10 Feet, 250 mA Max Dc, 250 mA At 40 VDC, 6.6 Feet Cable, 10-40 VDC
Get it by Monday, Aug 24
€558.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 250 MA at 40V DC |
| Cord Length | 79.2 ft. |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Height | 3.46" |
| Input Voltage | 10-40V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Marginal Gain, Red Output Status, Green Power On, Yellow |
| Length | 1.91" |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| Operating Mode | Diffuse Reflective |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Protection Type | Reverse Polarity And Short Circuit Protected |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
| Time Delay | Yes |
| Width | 1.81" |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 8.79 |
| Ship length (cm) | 4.85 |
| Ship width (cm) | 4.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Sensor Type | Contact Rating | Contact Configuration | Max. Amps | Operating Mode | Time Delay | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1150E-6507 | 4 4/25" | 10-40V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 | |
 |
1150E-6513 | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €147.68 | |
|
1150E-6534 | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 | |
|
1150E-6513-9M | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €292.29 | |
 |
1150E-6504 | 4 4/25" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €234.16 | |
 |
1150E-6537 | 1.81" | 10-40V DC | Through Beam | - | - | - | - | - | €265.04 | |
|
1150E-6543 | 4.01" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 |
