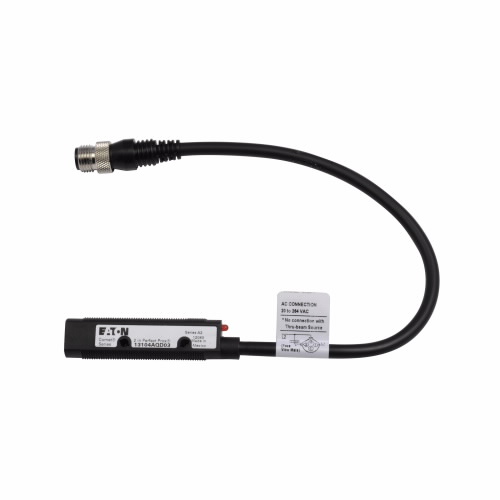

EATON 13104AQD03 Cylindrical Photoelectric Sensor, 20 to 264 VAC/15 to 30 VDC, 4-Pin Micro Connector
Item: BJ6BPDModel: 13104AQD03Cross Ref: 2XCE5
7 In Stock
Ships within 2 days via
5.00% off
€664.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage | 20-264V AC |
| Body Material | Polyurethane |
| Connection | Dual Key Micro |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 300 MA AC/DC at 20-264V AC/15-30V DC |
| Dc Supply Voltage Rating | 15-30V DC |
| Display Qty | 1 |
| Electrical Connection | Dual Key Micro Connector |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Infrared |
| Enclosure Material | Polyurethane |
| Features | Latching Short Circuit |
| Height | 2" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 20-264V AC @ 50/60 Hz, 15-30V DC (NPN) |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 5" |
| Max. Amps | 300 mA |
| Max. Load Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 50 mm |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 10 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 4 |
| Notes | Sensor Will Detect A 90% Reflectance Card at The Sensing Range, Sensor Will Ignore A 90% Reflectance Card at The Cutoff Range |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 127 mm |
| Overall Dia. | 18 mm |
| Overall Height | 51 mm |
| Overall Width | 152 mm |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Latching Short Circuit |
| Response Time | 10 ms |
| Sensing Method | Diffuse |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Straight |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | Comet |
| Supply Voltage | 20-264V AC/15-30V DC |
| Supply Voltage Type | Ac, Dc |
| Switching Frequency | 500 Hz |
| Type | Back Ground Suppression |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Model | Height | Enclosure Material | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Dc Supply Voltage Rating | Supply Voltage Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

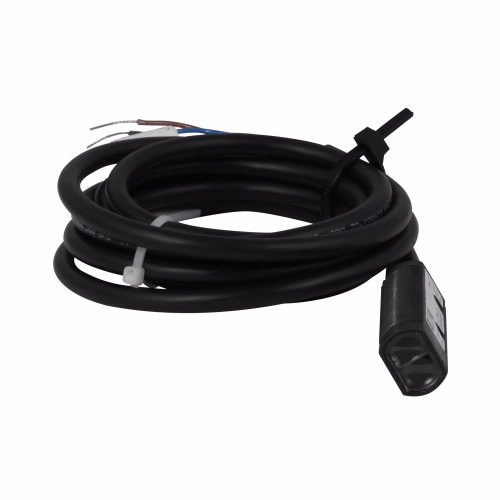

| 13101A6513 | 0.71" | Polyurethane | 300 mA | 20-264V AC/15-30V DC | Bare Wire | 18 mm | 15-30V DC | Ac, Dc | €589.85 | |
| 13101A6517 | 0.71" | Polyurethane | 250 mA | 10-30V DC | Bare Wire | 18 mm | 10-30V DC | Dc Only | €486.65 | |
| 13101AQD03 | 2" | Polyurethane | 300 mA | 20-264V AC/15-30V DC | Dual Key Micro Connector | 51 mm | 15-30V DC | Ac, Dc | €633.01 | |
| 13104A6517 | 50.8 mm | - | 250 mA | 10-30V DC | Bare Wire | 51 mm | 10-30V DC | Dc Only | €493.18 | |
| 13104A6513 | 0.71" | Polyurethane | 300 mA | 20-264V AC/15-30V DC | Bare Wire | 18 mm | 15-30V DC | Ac, Dc | €554.59 | |
| 13104AQD07 | 50.8 mm | - | 250 mA | 10-30V DC | M12 | 51 mm | 10-30V DC | Dc Only | €532.83 | |

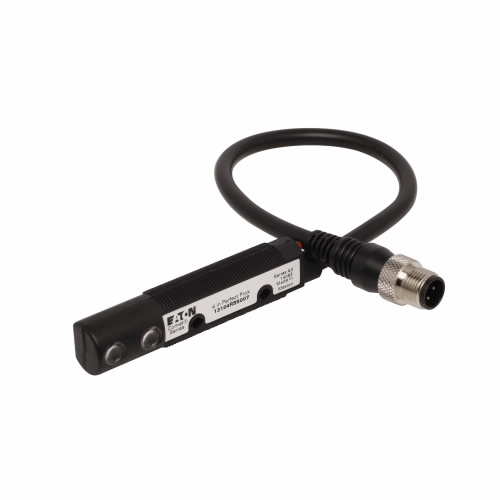

| 13104RS5007 | 0.71" | Polyurethane | 250 mA | 10-30V DC | M12 | 18 mm | 10-30V DC | Dc Only | €542.68 |
