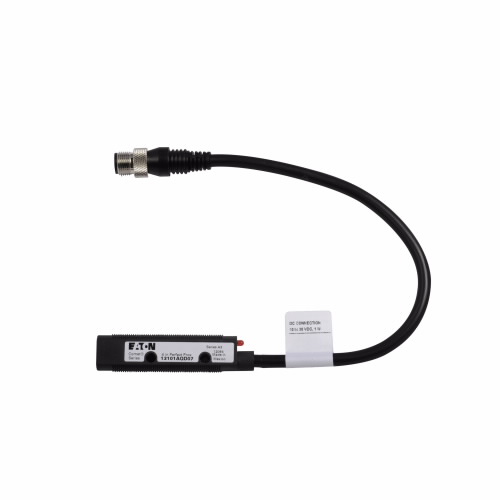

EATON 13101AS3342 Photoelectric Sensor, 12 Feet Cable, 6.6 Feet, 250 mA Npn At 10-30 VDC, 10-30 VDC
Get it by Tuesday, Feb 24
€403.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 12 Ft Cable |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 79.2 ft. |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Input Voltage | 10-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 2 3/5" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 100 mA, 250 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Operating Mode | Background Suppression |
| Operating Temperature - Min | -40°F |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Back Ground Suppression |
| Warranty | 3 yrs. |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Operating Mode | Response Time | Sensing Method | Body Material | Price | |
|---|---|---|---|---|---|---|---|
| 13104AQD05 | IP68, IP69K | Background Suppression | - | - | - | €650.57 | |
| 13105ASROHS | IP68, IP69K | Background Suppression | - | - | - | €391.81 | |
| 13101ANS8126 | IP68, IP69K | Background Suppression | - | - | - | €804.56 | |
| 13101APS8126 | IP68, IP69K | Background Suppression | - | - | - | €408.97 | |
| 13104RS5072 | IP68, IP69K | Background Suppression | - | - | - | €371.21 | |
| 13104RS7290 | IP68, IP69K | Background Suppression | - | - | - | €1,034.34 | |
| 12100RF1217 | IP68, IP69K | Thru Beam | - | - | - | €282.09 |
