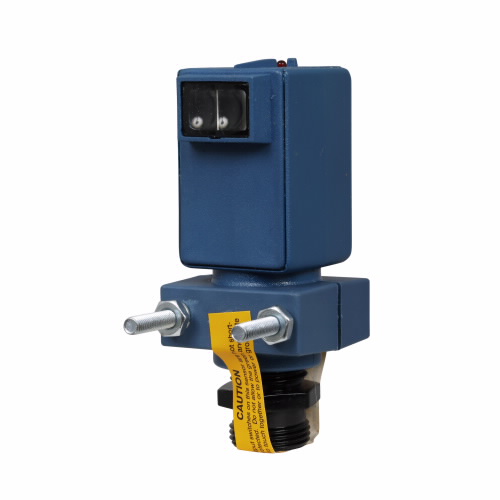

EATON 1255A-6511 Photoelectric Sensor, Distance 100 Feet, 50 mA Max Ac, 50 mA At 132 VAC, 90-132 VAC
Get it by Wednesday, Aug 26
€743.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | L1 Switched |
| Contact Rating | 50 MA at 132V AC |
| Cord Length | 72 ft. |
| Enclosure Lens Material | Nylon |
| Enclosure Material | Noryl |
| Height | 2.9" |
| Input Voltage | 90-132V AC |
| Led Indicator | Output Status, Red |
| Length | 1.83" |
| Max. Amps | 50 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -22°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 |
| Notes | For Complete System, Order 1 Source And 1 Detector. Minimum Object Size Is 0.4 X 0.7 Inches (10 X 18 Mm). |
| Operating Mode | Thru Beam |
| Product Name | Eaton 55 Series Photoelectric Sensor |
| Protection Type | Reverse Polarity |
| Sensor Type | Through Beam |
| Switch Type | Photoelectric |
| Width | 1 16/25" |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 4.65 |
| Ship width (cm) | 4.17 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Enclosure Material | Led Indicator | Min. Operating Temp. | Connection | Max. Amps | Sensor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E55BLT1D | 1.57" | 35-250V | PBT Resin | Power On Output On | -13°F | Screw Terminal | 400 mA | - | €965.08 | |
 |
E55BLT1C | 1.57" | 35-250V | PBT Resin | Output On Power On | -13°F | Screw Terminal | 400 mA | - | €977.34 | |
 |
E55CAL18A2E | 2.17" | 20-250V AC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 150 mA | Inductive Proximity | €605.28 | |
 |
E55BLT1E | 1.57" | 35-250V | PBT Resin | Output On Power On | -13°F | Screw Terminal | 400 mA | - | €965.08 | |
 |
E55CAL12A2E | 2.17" | 20-250V AC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 150 mA | Inductive Proximity | €595.20 | |
 |
E55CAL12T110 | 2.17" | 10-30V DC | polybutylene Teraphtalate | Output Status | -13°F | 6.6 Ft (2 M) Cable | 200 mA | Inductive Proximity | €478.77 | |
 |
E55CAL18T111 | 0.71" | 10-30V DC | - | Output On | -13°F | - | 200 mA | - | €453.92 |
