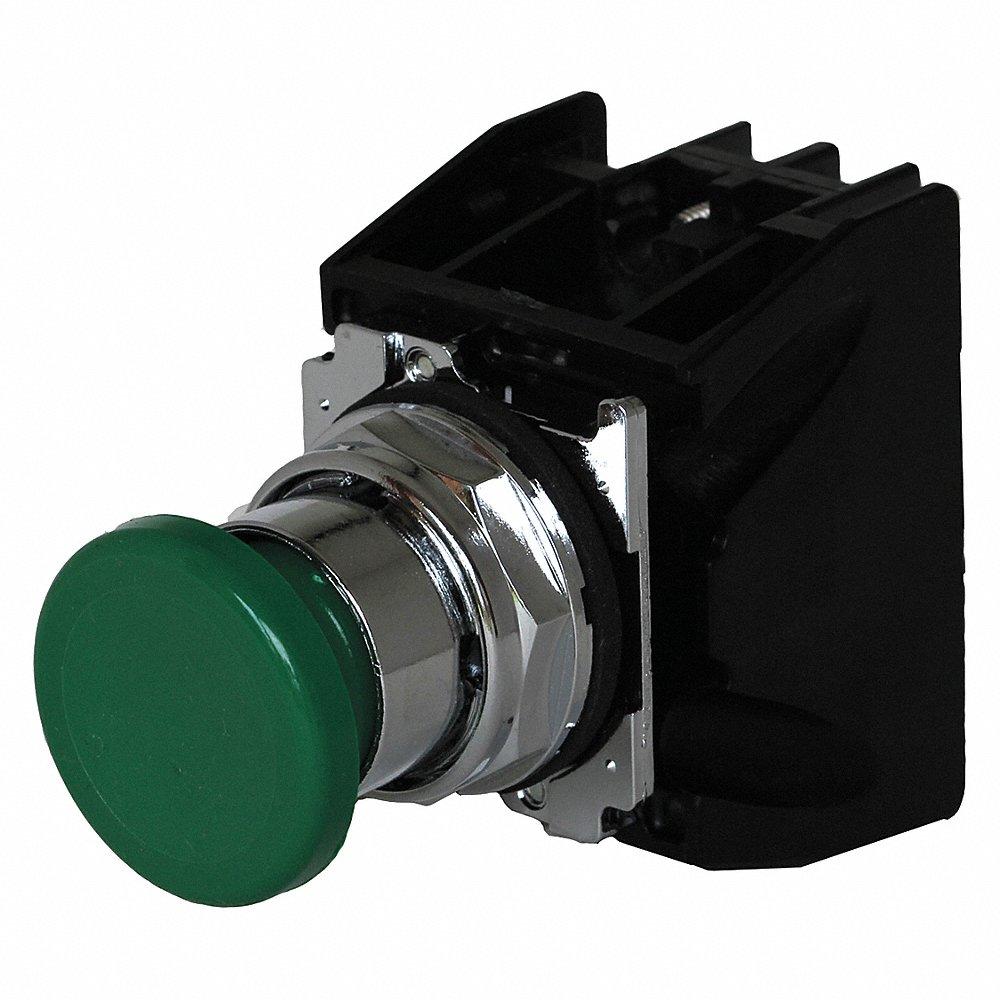

EATON 10250T710G Hazardous Location Push Button With Contacts, Green, 30 mm Size, 1 NC/1 NO, Metal
Item: CJ2KLPModel: 10250T710GCross Ref: 31HK81
7 In Stock
Ships within 2 days via
5.00% off
€394.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Bezel Material | Zinc Die Cast |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 2.5A @ 250V |
| Features | Drainage Holes, Factory Sealed, Grounding Nibs |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Metal |
| Head/lens Color | Green |
| Included | Drainage Holes To Prevent Moisture Build-Up, Grounding Nibs Designed To Bite Through Most Enclosure Coatings |
| Ip Rating | IP65 |
| Max. Operating Temp. | 140°F |
| Mechanical Operating Durability | 1 x 10^7 |
| Min. Operating Temp. | 32°F |
| Mushroom Head Dia. | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Oil And Grease Resistant |
| Series | 10250T Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Bezel Material | Head/lens Color | Type | Height | Actuator Color | Actuator Material | Push Button Style | Contact Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10250T706B | Chrome | Black | Push Button | 2" | Black | Plastic | Flush | 1 NC, 1 NO | €421.44 | |
| 10250T706G | Zinc Die Cast | Green | Push Button | 2 3/4" | Green | Plastic | Flush | 1 NC, 1 NO | €403.82 | |
| 10250T707B | Zinc Die Cast | Black | Push Button | 2 1/2" | Black | Plastic | Flush | 2 NO, 2 NC | €509.25 | |
| 10250T706R | Zinc Die Cast | Red | Push Button | 2" | Red | Plastic | Flush | 1 NC, 1 NO | €314.32 | |
| 10250T707R | Zinc Die Cast | Red | Push Button | 3" | Red | Plastic | Flush | 2 NO, 2 NC | €561.83 | |
| 10250T707G | Zinc Die Cast | Green | Push Button | 3" | Green | Plastic | Flush | 2 NO, 2 NC | €475.29 | |
| 10250T708R | Zinc Die Cast | Red | 30.5 mm, Class I Division 2 | 1" | Red | Plastic | Extended | 1 NC, 1 NO | €299.05 |
