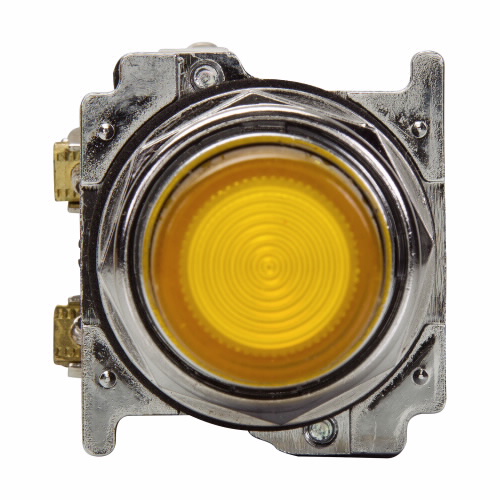

EATON 10250T397LYD24-53 Pushbutton, 30.5 Mm, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Extended | BJ4VTE 39P580

EATON 10250T397LYD24-53 Illuminated Push Button, Maintained/Momentary, Yellow, 24 VAC/DC

Item: BJ4VTEModel: 10250T397LYD24-53Cross Ref: 39P580
7 In Stock

Ships within 2 days via

€465.31
10.00% off
€418.78 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pushbutton
Ac Contact Rating 10A @ 600V
Action Momentary
Actuator Color Yellow
Actuator Material Plastic
Actuator Type Extended
Application Pushbutton
Bezel Chrome
Bezel Material Chrome Plated Zinc Die Cast
Contact Configuration 1 NO
Contact Form 1NO
Dc Contact Rating 5A @ 250V
Display Qty 1
Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Head Material Metal
Head/lens Color Yellow
Height 2 1/2"
Illumination Illuminated
Ip Rating IP65
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Lamp Voltage - Maximum 24V AC/DC
Length 5 1/2"
Light Unit Voltage 24V AC/DC
Manufacturer Warranty Length 1 yr.
Mechanical Operating Durability 1 x 10^7
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Number Of Operators 1
Operating Mode Momentary
Operating Temperature - Maximum 150°F
Operating Temperature - Minimum 1°F
Operator Illumination Illuminated
Operator Material Metal
Operator Voltage Rating - Maximum 120V AC/DC
Overall Depth 5.5"
Overall Height 2 1/2"
Overall Width 2 1/4"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Extended
Resistance Properties Oil And Grease Resistant, Watertight
Series 10250T Series
Special Features 10250T Series
Standards Ce, Csa, Ul Listed
Terminal Connection Screw Clamp
Type 30.5 mm Heavy-Duty Watertight/Oiltight
Warranty 1 yr.
Width 2 1/4"

Shipping Info:

Ship weight (kg) 0.16
Ship height (cm)6.35
Ship length (cm)13.97
Ship width (cm)5.72
Country of OriginUS

Product Variants

ProductModelHeightLamp Module TypeHead MaterialTerminal ConnectionBezel MaterialContact FormBezelIp RatingPrice
EATON 10250T397LAD24-1 Pushbutton, 30.5 Mm, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Extended | BJ4VNK 39P585 10250T397LAD24-13"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NO/1NCChromeIP65€620.64
EATON 10250T397LAD24-53 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNL 39P579 10250T397LAD24-531.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NOChromeIP65€465.31
EATON 10250T397LAD2A-51 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNQ 39P610 10250T397LAD2A-511.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NCChromeIP65€465.31
EATON 10250T397LAD24-51 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNT 39P591 10250T397LAD24-511.78"-----Chrome-€465.31
EATON 10250T397LAD2A-1 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNU 39P604 10250T397LAD2A-11.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NO/1NCChromeIP65€620.64
EATON 10250T397LAD2A-53 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNW 39P597 10250T397LAD2A-531.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NOChromeIP65€465.31
EATON 10250T397LGD24-51 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Extended | BJ4VPE 39P590 10250T397LGD24-511.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NCChromeIP65€465.31
