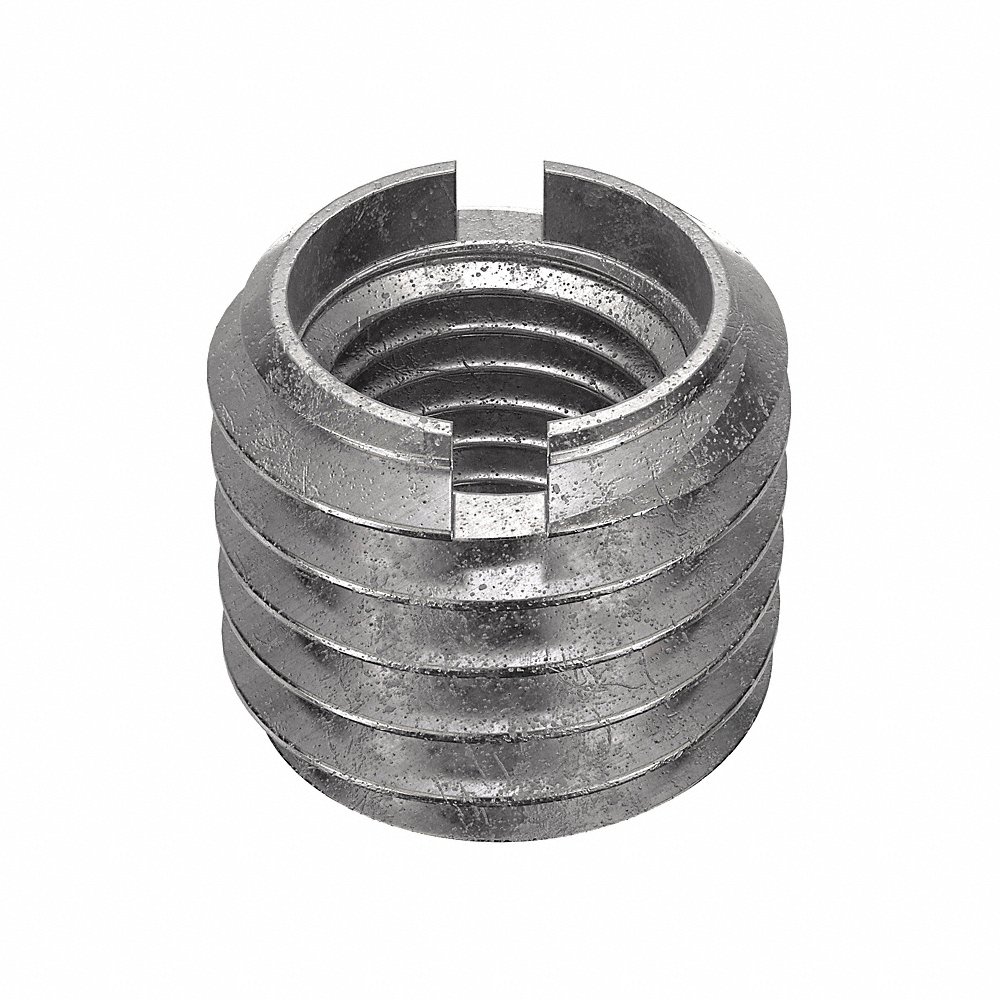

E-Z LOK 653-10F-PK5 Thread Insert, M10x1.25 Int. Thread Size, 9/16 In - 12 Ext. Thread Size, Heavy Wall, SS
Item: CG6NBKModel: 653-10F-PK5Cross Ref: 4ZE77
7 In Stock
Ships within 2 days via
10.00% off
€40.82 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Insert |
| Brinell Hardness | 160 |
| Compatible Material | Metal |
| Compatible Tap Size | 9/16"-12 |
| Compatible With Grainger Part Number | 4ZE56 |
| Display Qty | 5 |
| Drill Size | 31/64" |
| External Class | Class 2A |
| External Thread Fit | 2A |
| External Thread Size | 9/16-12 |
| External Thread Size | 9/16"-12 |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Plain |
| Full Cure Time | 72 hrs. |
| Grade | Grade 303 |
| Hardness | Rockwell Brinell 160 |
| Insert Diameter | 14.3 mm |
| Installation Method | Bolt And Jam Nut, Drive Tool, Screwdriver |
| Internal Class | Class 6H |
| Internal Thread Fit | 2B |
| Internal Thread Size | M10 x 1.25 |
| Length | 33/64" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 12.2936 mm |
| Min. Full Thread Depth | 19/32 |
| Min. Full Thread Depth | 19/32" |
| Minimum Installation Depth | 15.078125 mm |
| Overall Length | 13 mm |
| Power Driver | 4ZE56 |
| Product Datasheet | e-z-lok-653-10f.pdf |
| System Of Measurement | Imperial/Metric |
| Tensile Strength | 89900 psi |
| Thread Type | Metric Internal, UNC External |
| Wall Type | Heavy Wall |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
- For Use on Metal
Documentation:
