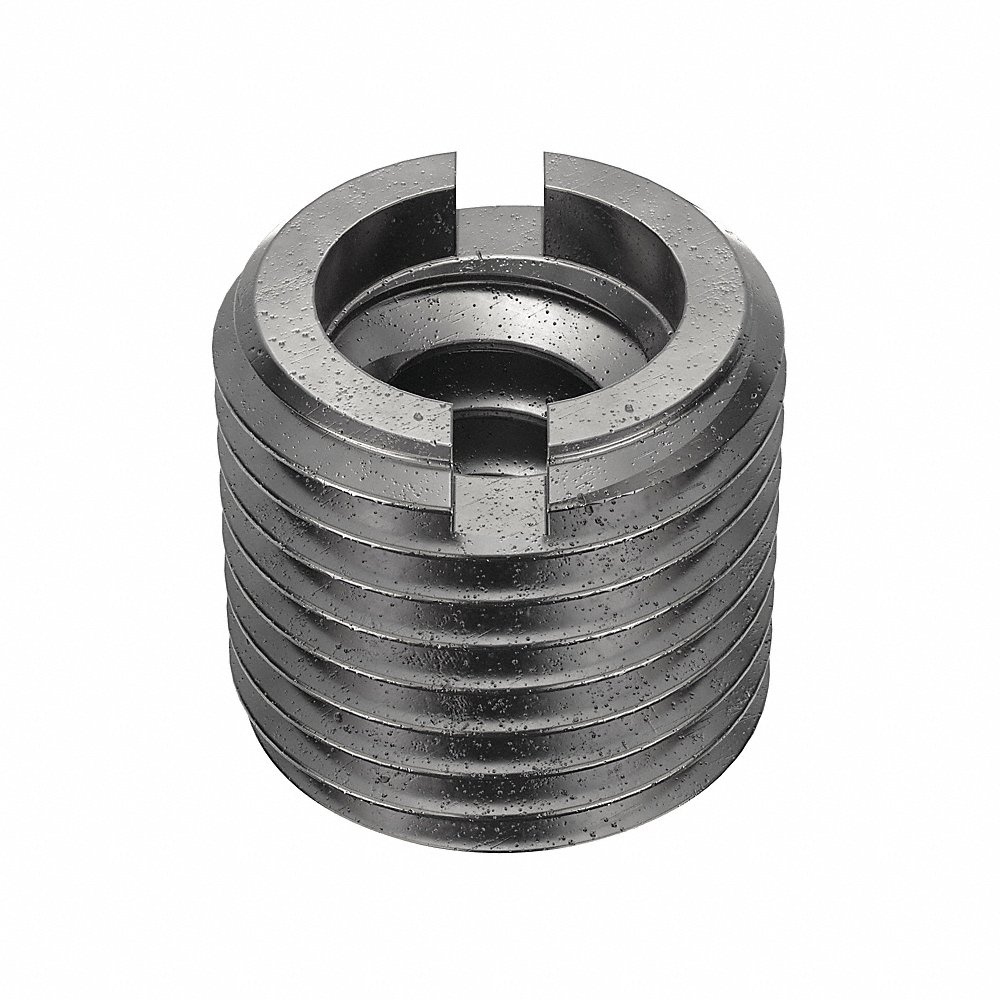

E-Z LOK 450-5 Thread Insert, M5x0.8 Internal Thread Size, M8x1.25 External Thread Size, Carbon Steel
Item: CG6NAFModel: 450-5Cross Ref: 4ZE40
7 In Stock
Ships within 2 days via
10.00% off
€37.61 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Insert |
| Brinell Hardness | 163 |
| Compatible Material | Metal |
| Compatible Tap Size | M8 x 1.25 |
| Compatible With Grainger Part Number | 4ZE52 |
| Display Qty | 10 |
| Drill Size | 6.9 mm |
| External Class | Class 6G |
| External Thread Fit | 6G |
| External Thread Size | M8 x 1.25 |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Black Phosphate |
| Full Cure Time | 72 hrs. |
| Hardness | Rockwell Brinell 163 |
| Insert Diameter | 7.5 mm |
| Installation Method | Bolt And Jam Nut, Drive Tool, Screwdriver |
| Internal Class | Class 6H |
| Internal Thread Fit | 6H |
| Internal Thread Size | M5 x 0.8 |
| Length | 7.5 mm |
| Material | Steel |
| Material Grade/class | Grade 12L14 |
| Maximum Hole Diameter | 6.9 mm |
| Min. Full Thread Depth | 23/64 |
| Min. Full Thread Depth | 23/64" |
| Minimum Installation Depth | 9.125 mm |
| Overall Length | 7 mm |
| Power Driver | 4ZE52 |
| System Of Measurement | Metric |
| Tensile Strength | 78300 psi |
| Thread Type | Metric |
| Wall Type | Heavy Wall |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
- For Use on Metal
