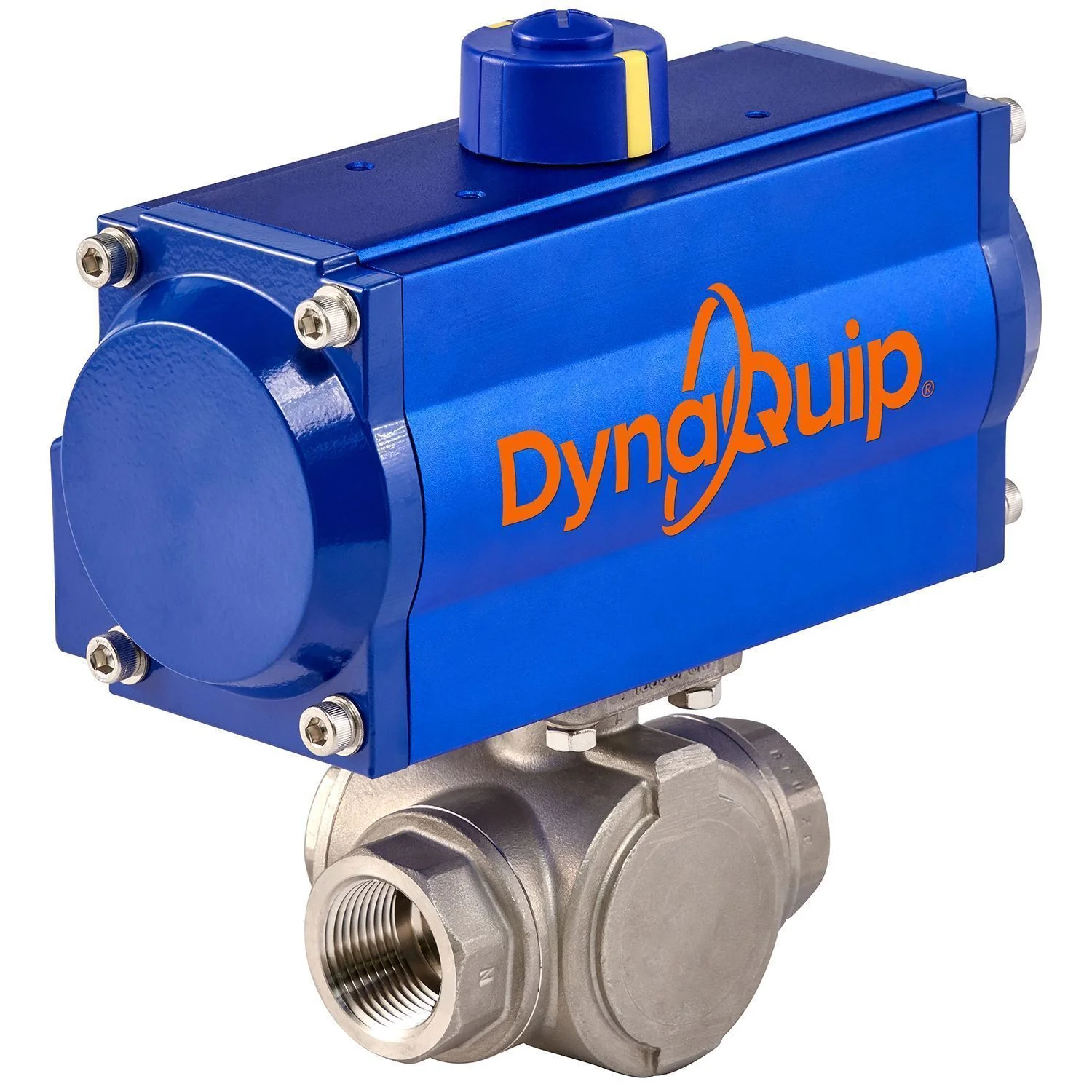

DYNAQUIP CONTROLS PYSA7AJDA092A Automated Ball Valve, 2 Pcs, L Port, Stainless Steel, 5.67 Inch Overall Length
Get it by Wednesday, Aug 19
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€2,256.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Actuator Air Port Connection | 1/4" FNPT |
| Actuator Features | 2 Spdt Switches |
| Actuator Operation | Air To Air |
| Actuator Series | HP |
| Actuator Type | Double Acting |
| Ball Material | Stainless Steel |
| Ball Opening Size | 1 1/2" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Actuated |
| Body Material | Stainless Steel |
| Body Style | Three Way |
| Connection Type | FNPT x FNPT x FNPT |
| Fail Safe Position | Fail Last |
| Flow Pattern | L Flow |
| For Media | Air, Natural Gas, Oil, Water |
| Grade | Grade 316 |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Included Pilot Solenoid | 115V AC Pilot Solenoid |
| Inlet Connection Entry | Bottom |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1 1/2" |
| Inlet Connection Type | NPT |
| Max. Actuator Air Pressure | 120 psi |
| Max. Actuator Ambient Temp. | 176°F |
| Max. Differential Pressure | 300 psi |
| Max. Inlet Pressure | 120 psi |
| Max. Media Temp. | 176°F |
| Max. Pressure | 800 psi CWP, 125 psi |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Steam Pressure | 125 psi |
| Media Temp. | -4°F to +176°F |
| Min. Actuator Air Pressure | 80 psi |
| Min. Actuator Ambient Temp. | -4°F |
| Min. Media Temp. | -4°F |
| Mount | Direct |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| No. Of Pieces | 1 |
| Nominal Valve Size | 1 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operation | Double Acting |
| Outlet Connection Gender-side 1 | Female |
| Outlet Connection Gender-side 2 | Female |
| Outlet Connection Type-side 1 | NPT |
| Outlet Connection Type-side 2 | NPT |
| Overall Length | 5.67" |
| Pilot Solenoid Voltage | 115V AC |
| Pipe Size | 1 1/2" |
| Port | Diverter L Style |
| Required Pressure | 80 psi |
| Seal Material | FKM, PTFE |
| Seat Material | PTFE |
| Stem Grade | Grade 316 |
| Stem Material | 316 Stainless Steel |
| Stem Type | Bottom Loaded |
| Temp. | +14°F to +140°F |
| Valve Construction | Two-Piece |
| Valve Series | Pysa |
| Valve Ways | 3-Way |
Shipping Info:
| Ship weight (kg) | 8.6 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 29.46 |
| HS code | 8481809040 |
| Country of Origin | CN |
