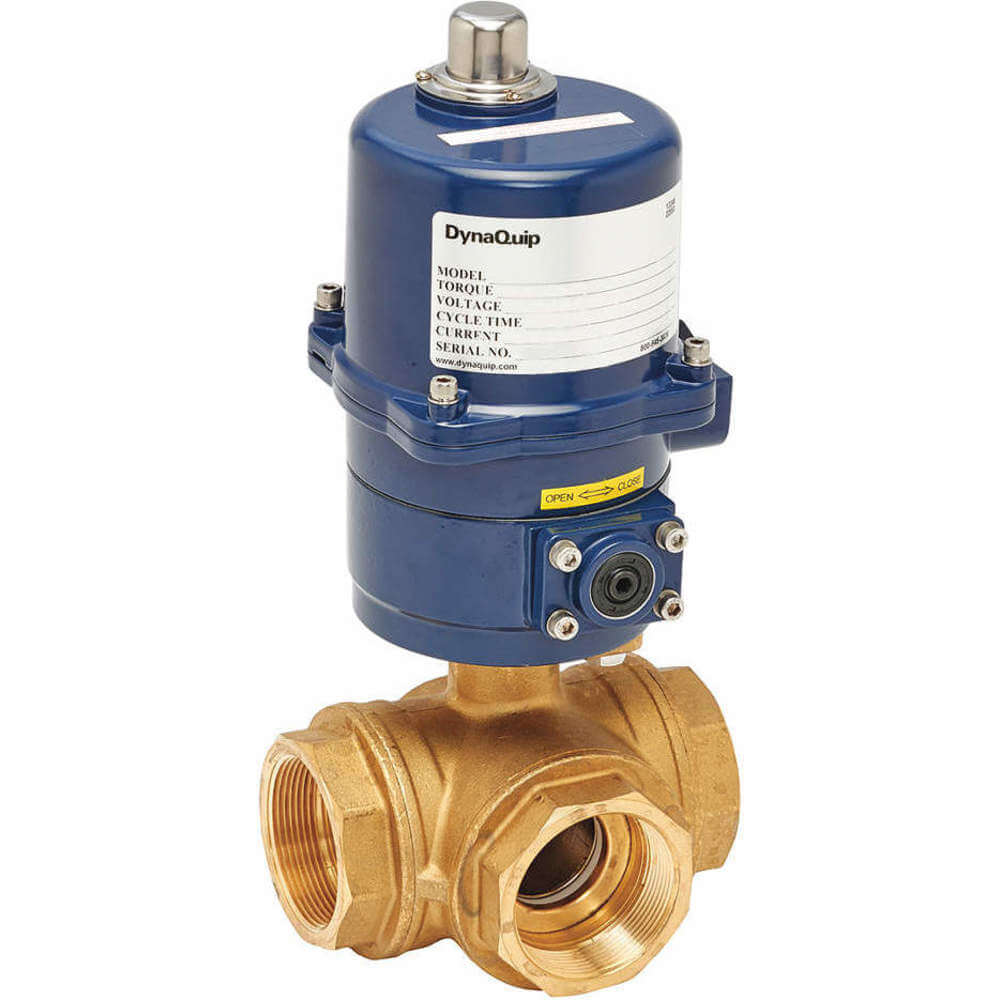

DYNAQUIP CONTROLS EYHG8AUE07 Automated Ball Valve, 2 Inch, 3 Way, Brass
Get it by Friday, Aug 21
13.00% off
€2,993.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Actuator Cycle Time | 27 sec. |
| Actuator Cycle Time-90° | 27 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Auxiliary Limit Switch, Manual Override, Position Indicator |
| Actuator Operation | 90° |
| Actuator Series | DE |
| Ambient Temp. | -22°F to +149°F |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Finish | Brass , Nickel Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Actuated |
| Body Material | Brass |
| Body Material (hydraulic Valves) | Brass |
| Body Seal Material | Viton |
| Body Style | 3-Way |
| Coefficient Of Volume(cv) | 43.81 |
| Connection | FNPT |
| Connection Type | FNPT x FNPT x FNPT |
| Fail Safe Position | Fail Last |
| Flow Pattern | L Flow |
| For Media | Water |
| General Connection Type | Female NPT |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 2" |
| Inlet Connection Type | NPT |
| Ip Rating | IP66 |
| Max. Actuator Ambient Temp. | 140°F |
| Max. Media Temp. | 300°F |
| Max. Operating Temp. | 300°F |
| Max. Pressure | 400 psi |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure Differential | 300 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 100 psi |
| Max. Water Pressure | 400 psi |
| Media Temp. | -20°F to +300°F |
| Min. Actuator Ambient Temp. | 10°F |
| Min. Media Temp. | -20°F |
| Mount | Direct |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| No. Of Ports | 3 |
| Nominal Valve Size | 2" |
| Nominal Voltage | 120V AC |
| Outlet Connection Gender-side 1 | Female |
| Outlet Connection Gender-side 2 | Female |
| Outlet Connection Size-side 1 | 2" |
| Outlet Connection Size-side 2 | 2" |
| Outlet Connection Type-side 1 | NPT |
| Outlet Connection Type-side 2 | NPT |
| Overall Length | 5.73" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 2" |
| Port | Diverter L Style |
| Port Connection Type | Threaded |
| Porting Style | Standard Port |
| Rated For | 400 psi CWP |
| Seal Material | FKM, PTFE |
| Seals | Viton |
| Seat Material | PTFE |
| Stem Finish | Brass , Nickel Plated |
| Stem Type | Blowout Resistant |
| Valve Construction | Two-Piece |
| Valve Series | EYHG Series |
| Valve Ways | 3-Way |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 15.56 |
| Ship height (cm) | 27.43 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 33.27 |
| HS code | 8481809025 |
| Country of Origin | TW |
Product Variants
| Model | Seat Material | Nominal Valve Size | Port | Inlet Connection Size | Outlet Connection Size-side 2 | Outlet Connection Size-side 1 | Stem Finish | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EYHGAAUE01 | PTFE | 3" | Diverter L Style | 3" | 3" | 3" | Nickel Plated | Blowout Resistant | €3,950.41 | |

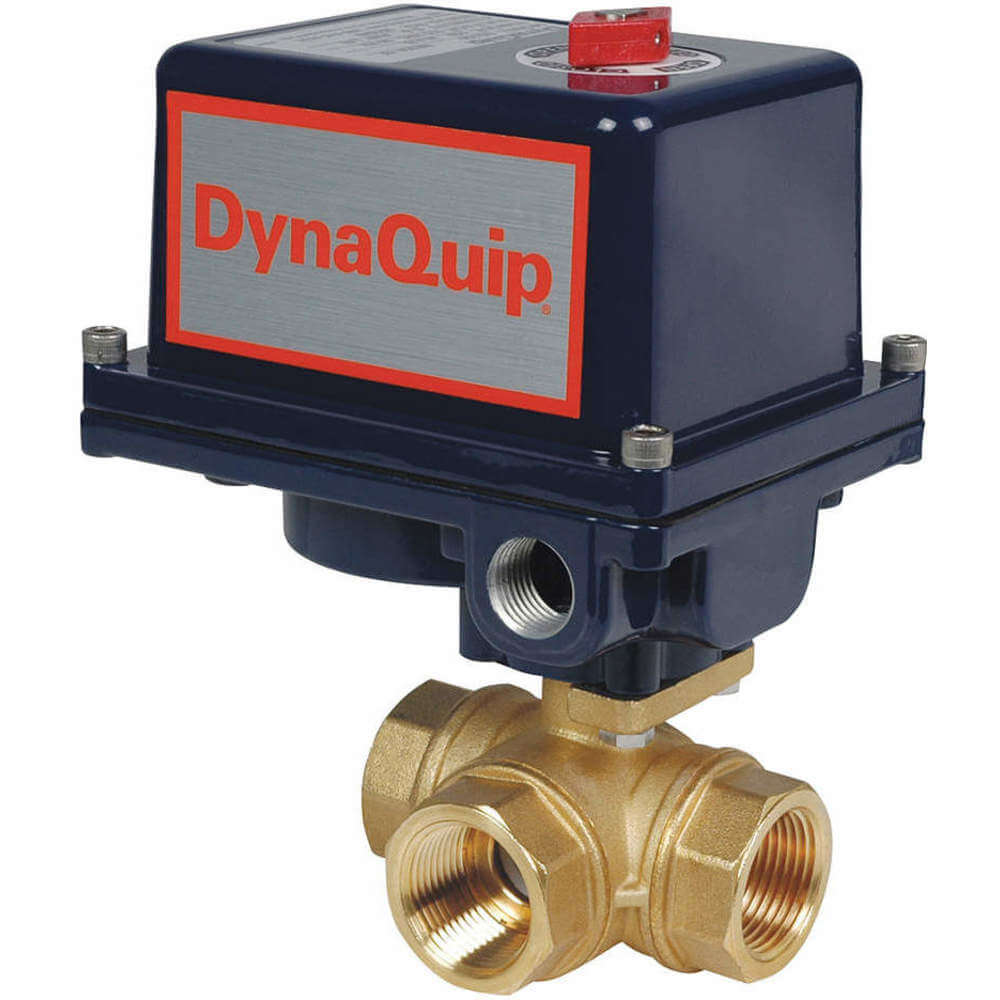

| EYHG3AUE20 | PTFE | 1/2" | Diverter L Style | 1/2" | 1/2" | 1/2" | Nickel Plated | Blowout Resistant | €769.03 | |
| EYHG4AUE20 | PTFE | 3/4" | Diverter L Style | 3/4" | 3/4" | 3/4" | Nickel Plated | Blowout Resistant | €802.07 | |
| EYHG5AUE25 | PTFE | 1" | Diverter L Style | 1" | 1" | 1" | Nickel Plated | Blowout Resistant | €985.73 | |
| EYHG6AUE25 | RTFE | 1 1/4" | Diverter L Style | 1 1/4" | 1 1/4" | 1 1/4" | Nickel Plated | Blowout Proof | €1,128.60 | |
| EYHG7AUE25 | PTFE | 1 1/2" | Standard L | 1 1/2" | 1 1/2" | 1 1/2" | Nickel Plated | Blowout Resistant | €1,440.85 | |
| EYHG1AUE20H | PTFE | 1/4" | Diverter L Style | 1/4" | 1/4" | 1/4" | Nickel Plated | Blowout Resistant | €917.14 |
