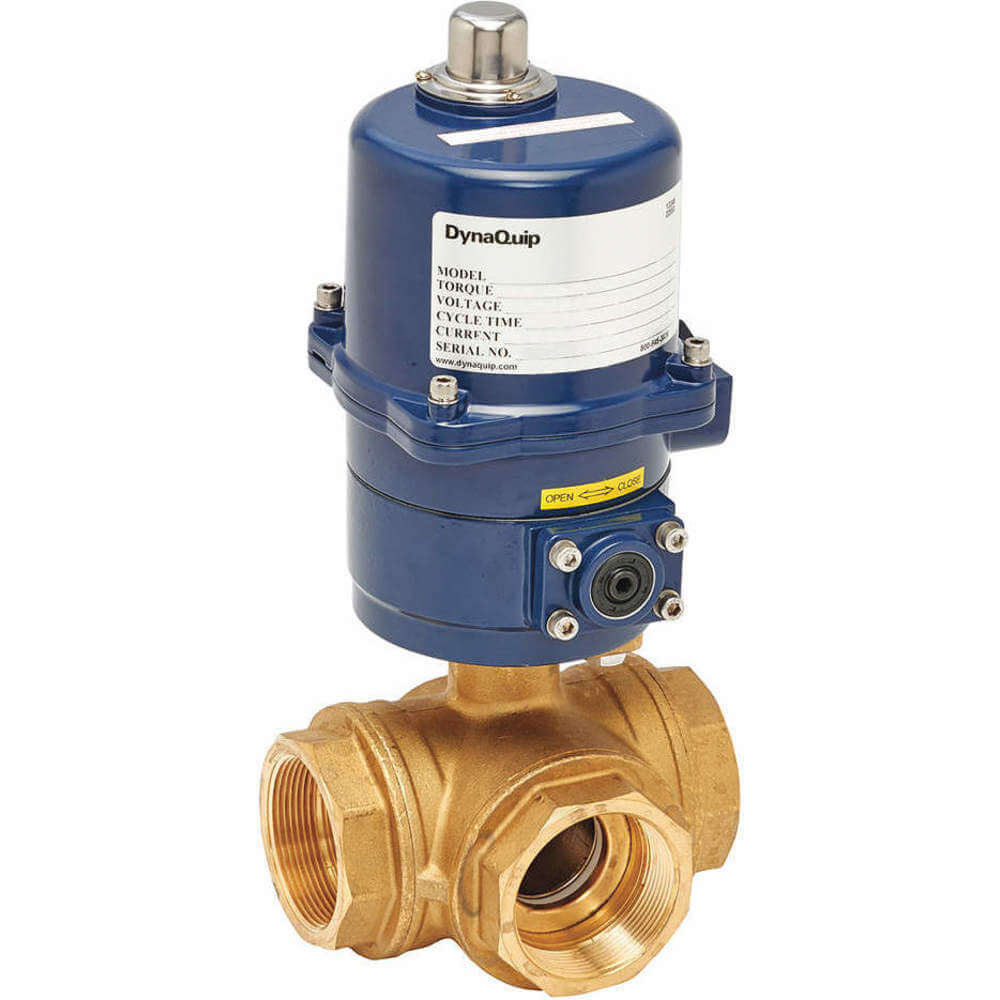

DYNAQUIP CONTROLS EYHG3AUE20 Automated Ball Valve, 1/2 Inch NPT, 3 Way, Standard Port, 2.87 Inch Body Length
Item: AA8YZPModel: EYHG3AUE20Cross Ref: 1AWE3
7 In Stock
Ships within 2 days via
€730.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Actuation | Electrically Actuated |
| Actuator Cycle Time | 2.5 sec. |
| Actuator Cycle Time-90° | 2.5 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Manual Override, Position Indicator, Thermal Overload Protection |
| Actuator Operation | 90° |
| Actuator Series | DE |
| Ambient Temp. | -40°F to +150°F |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Finish | Brass , Nickel Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Actuated |
| Body Length | 2.87" |
| Body Material | Brass |
| Coefficient Of Volume(cv) | 4.16 |
| Connection | FNPT |
| Connection Gender | Threaded |
| Connection Type | FNPT x FNPT x FNPT |
| Control Type | Electrically Operated |
| Cwp | 400 psi |
| Fail Safe Position | Fail Last |
| Flow Direction | 3-Way |
| Flow Pattern | L Flow |
| For Media | Water |
| General Connection Type | Female NPT |
| Handle Style | Electrically Operated |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1/2" |
| Inlet Connection Type | NPT |
| Ip Rating | IP66 |
| Max. Actuator Ambient Temp. | 150°F |
| Max. Media Temp. | 300°F |
| Max. Operating Temp. | 300°F |
| Max. Pressure | 400 psi |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure Differential | 300 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 100 psi |
| Max. Steam Pressure | 125 psi |
| Max. Water Pressure | 400 psi |
| Media Temp. | -20°F to +300°F |
| Min. Actuator Ambient Temp. | -40°F |
| Min. Media Temp. | -20°F |
| Mount | Direct |
| Mounting Type | Inline Threaded |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| No. Of Ports | 3 |
| Nominal Valve Size | 1/2" |
| Nominal Voltage | 120V AC |
| Outlet Connection Gender-side 1 | Female |
| Outlet Connection Gender-side 2 | Female |
| Outlet Connection Size-side 1 | 1/2" |
| Outlet Connection Size-side 2 | 1/2" |
| Outlet Connection Type-side 1 | NPT |
| Outlet Connection Type-side 2 | NPT |
| Overall Length | 2.87" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Diverter L Style |
| Port Type | NPT |
| Porting Style | Standard Port |
| Rated For | 400 psi CWP |
| Seal Material | FKM, PTFE |
| Seals | Viton |
| Seat Material | PTFE |
| Stem Finish | Brass , Nickel Plated |
| Stem Type | Blowout Resistant |
| Type | Standard Port |
| Valve Construction | Two-Piece |
| Valve Series | EYHG Series |
| Valve Type | Brass 3-Way Automated Ball Valve |
| Valve Ways | 3-Way |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 18.54 |
| HS code | 8481809020 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Material | Port | Stem Type | Stem Finish | Max. Steam Pressure | Voltage | Body Material | Mount | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EYHG8AUE07 | FKM, PTFE | Diverter L Style | Blowout Resistant | Nickel Plated | - | 120V AC | Brass | Direct | €3,441.11 | |
 |
EYHGAAUE01 | FKM, PTFE | Diverter L Style | Blowout Resistant | Nickel Plated | 125 psi | 120V AC | Brass | Direct | €3,950.41 | |
|
EYHG4AUE20 | FKM, PTFE | Diverter L Style | Blowout Resistant | Nickel Plated | 125 psi | 120V AC | Brass | Direct | €761.96 | |
|
EYHG5AUE25 | FKM, PTFE | Diverter L Style | Blowout Resistant | Nickel Plated | 125 psi | 120V AC | Brass | Direct | €936.45 | |
|
EYHG6AUE25 | Viton | Diverter L Style | Blowout Proof | Nickel Plated | 125 psi | - | Brass | Direct | €1,072.17 | |
|
EYHG7AUE25 | FKM, PTFE | Standard L | Blowout Resistant | Nickel Plated | 125 psi | 120V AC | Brass | Direct | €1,440.85 | |
|
EYHG1AUE20H | FKM, PTFE | Diverter L Style | Blowout Resistant | Nickel Plated | 125 psi | 12V DC/24V AC/DC | Brass | Direct | €871.28 |
