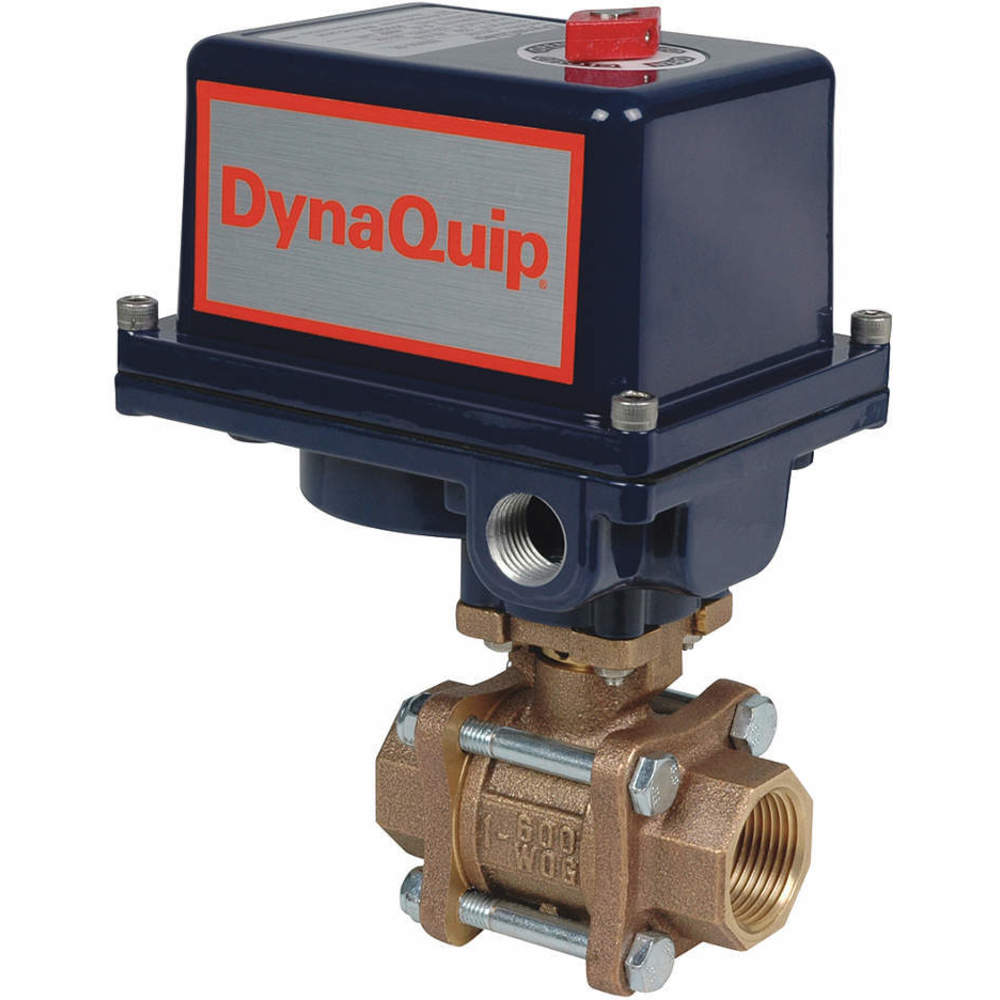

DYNAQUIP CONTROLS EVA67AME25 Automated Ball Valve, 1 1/2 Inch FNPT, 2 Way, Full Port, 4.72 Inch Body Length
Item: AD2RNJModel: EVA67AME25Cross Ref: 3TPF9
7 In Stock
Ships within 2 days via
€1,025.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Actuation | Electrically Actuated |
| Actuator Cycle Time | 6 sec. |
| Actuator Cycle Time-90° | 6 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Manual Override, Position Indicator, Thermal Overload Protection |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Actuator Series | DE |
| Ambient Temp. | -40°F to +150°F |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Actuated |
| Body Length | 4 18/25" |
| Body Material | Bronze |
| Coefficient Of Volume | 110 |
| Coefficient Of Volume(cv) | 110 |
| Connection | FNPT |
| Connection Gender | Threaded |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1 1/2" |
| Connection Size-side 2 | 1 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Control Type | Electrically Operated |
| Cwp | 600 psi |
| Fail Safe Position | Fail Last |
| Flow Direction | 2-Way |
| For Media | Compressed Air, Natural Gas, Oil |
| General Connection Type | Female NPT |
| Handle Style | Electrically Operated |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Ip Rating | IP66 |
| Max. Actuator Ambient Temp. | 150°F |
| Max. Amps | 5A |
| Max. Media Temp. | 400°F |
| Max. Operating Temp. | 400°F |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure Differential | 200 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Steam Pressure | 125 psi |
| Max. Water Pressure | 600 psi |
| Media Temp. | -20°F to +400°F |
| Min. Actuator Ambient Temp. | -40°F |
| Min. Media Temp. | -20°F |
| Mount | Direct |
| Mounting Type | Inline Threaded |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Ports | 2 |
| Nominal Valve Size | 1 1/2" |
| Nominal Voltage | 120V AC |
| Overall Length | 4.72" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1 1/2" |
| Port | Full |
| Port Type | NPT |
| Porting Style | Full Port |
| Rated For | 600 psi CWP |
| Seal Material | FKM, PTFE |
| Seals | Viton |
| Seat Material | PTFE |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Type | Full Port |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | EVA Series |
| Valve Ways | 2-Way |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 4.76 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 28.45 |
| HS code | 8481809020 |
| Country of Origin | US |
Product Variants
| Model | Seal Material | Stem Type | Body Material | Port | Mount | Stem Material | Connection | Max. Water Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EVA63AME22 | FKM, PTFE | Blowout Resistant | Bronze | Full | Direct | Stainless Steel | FNPT | 600 psi | €733.43 | |
| EVA64AME22 | PTFE, Viton | Blowout Proof | Bronze | Full | Direct | Stainless Steel | FNPT | 600 psi | €747.60 | |
| EVA65AME21 | FKM, PTFE | Blowout Resistant | Bronze | Full | Direct | Stainless Steel | FNPT | 600 psi | €823.05 | |
| EVA66AME21 | FKM, PTFE | Blowout Resistant | Bronze | Full | Direct | Stainless Steel | FNPT | 600 psi | €807.53 | |
| EVA68AME01 | FKM, PTFE | Blowout Resistant | Bronze | Full | Direct | Stainless Steel | FNPT | 600 psi | €2,561.93 |
